Wacker Neuson
29% off

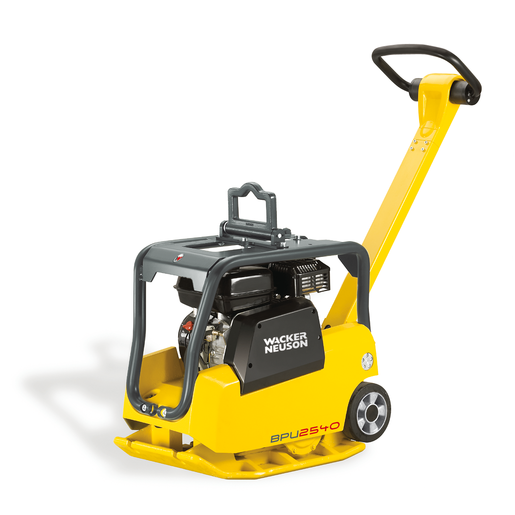

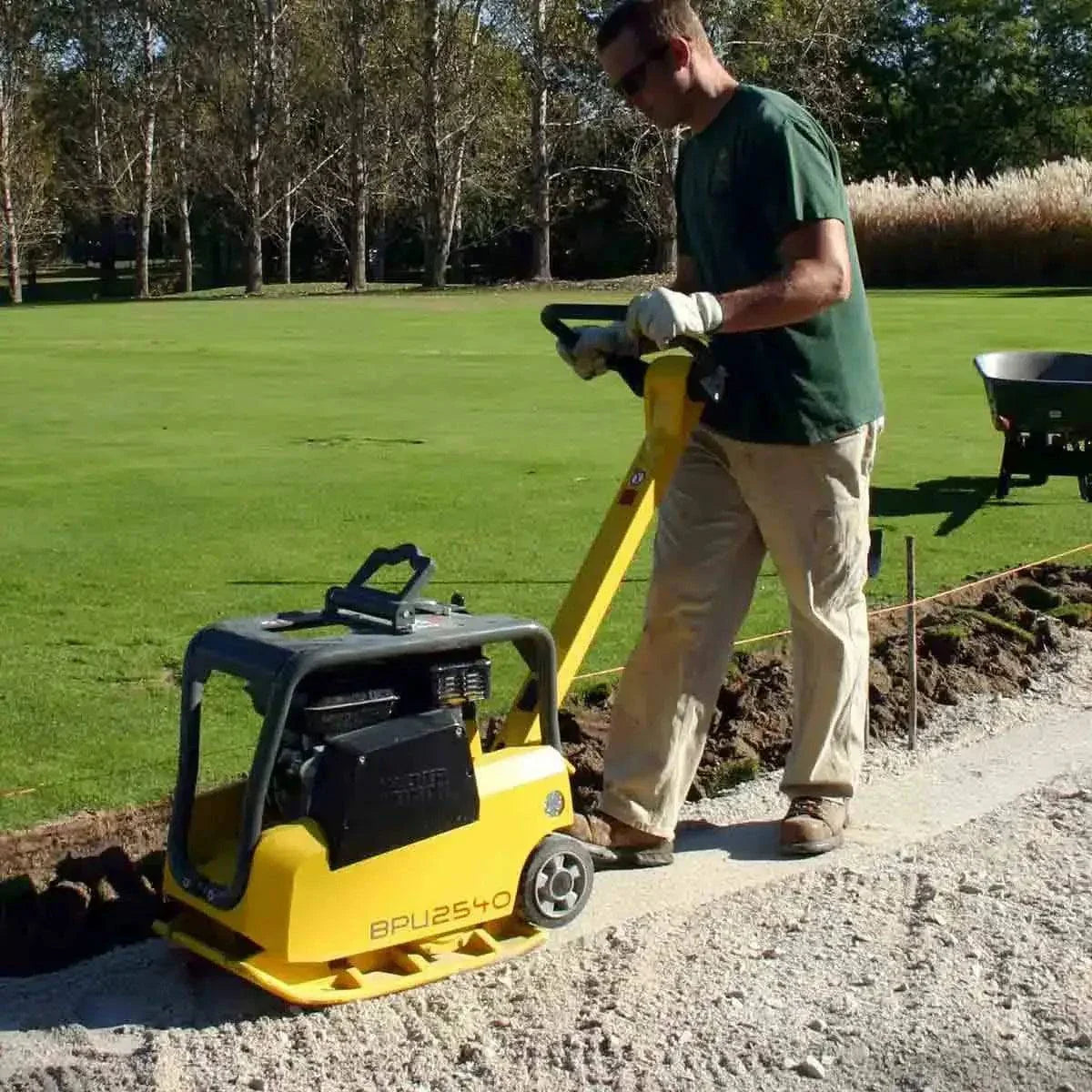

WACKER NEUSON BPU2540 REVERSIBLE PLATE TAMPER

$5,200.00 $7,300.00

Pickup available at 7 15th Street

Usually ready in 24 hours

Delivery and Shipping

Please contact us for shipping.

Description

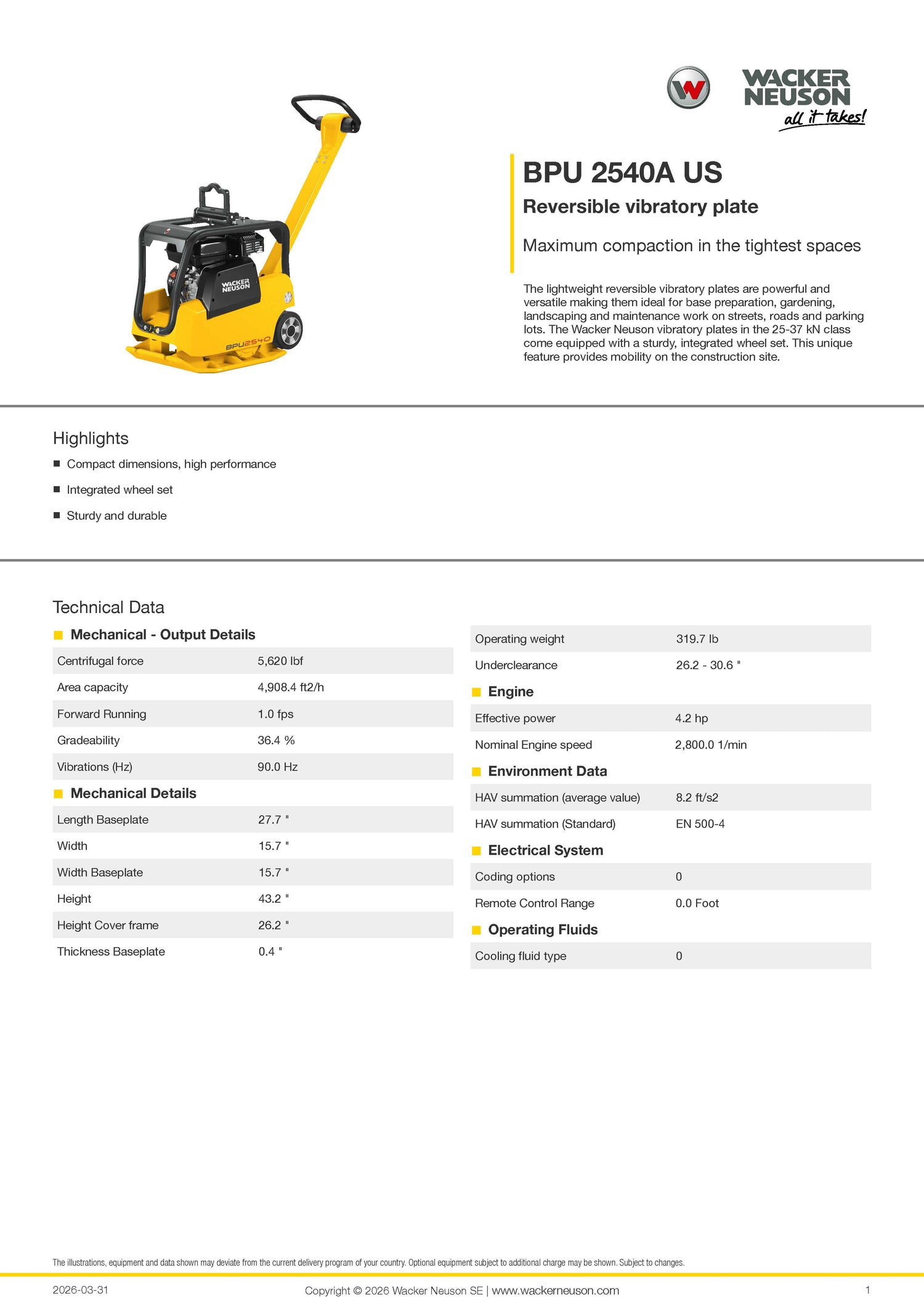

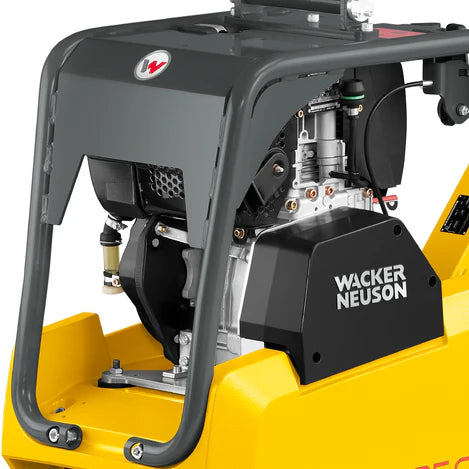

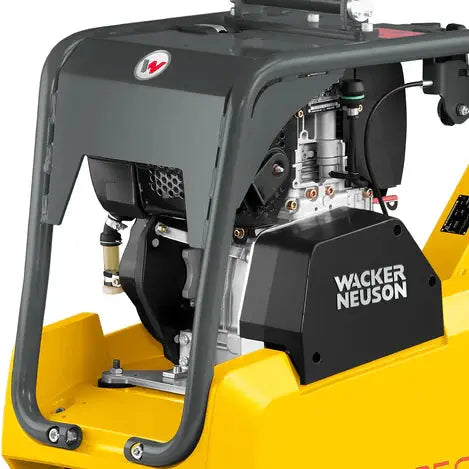

NEW 2026 WACKER NEUSON BPU2540 REVERSIBLE VIBRATORY PLATE TAMPER. POWERED BY HONDA GX160 4.2HP ENGINE. 5YR WARRANTY!

OPERATING FLUIDS Metric Imperial
Cooling fluid type 0 0
Tank capacity 3,60 l 1,0 gal US
Exciter oil volume 0,60 l 0,63 qt US
Hydraulic fluid type Renolin MR 520 Renolin MR 520
Hydraulic fluid volume 0,285 l 0,3 qt US
Cooling fluid volume 0,00 l 0,0 qt US
Exciter oil type 75W-90 API GL-4 75W-90 API GL-4

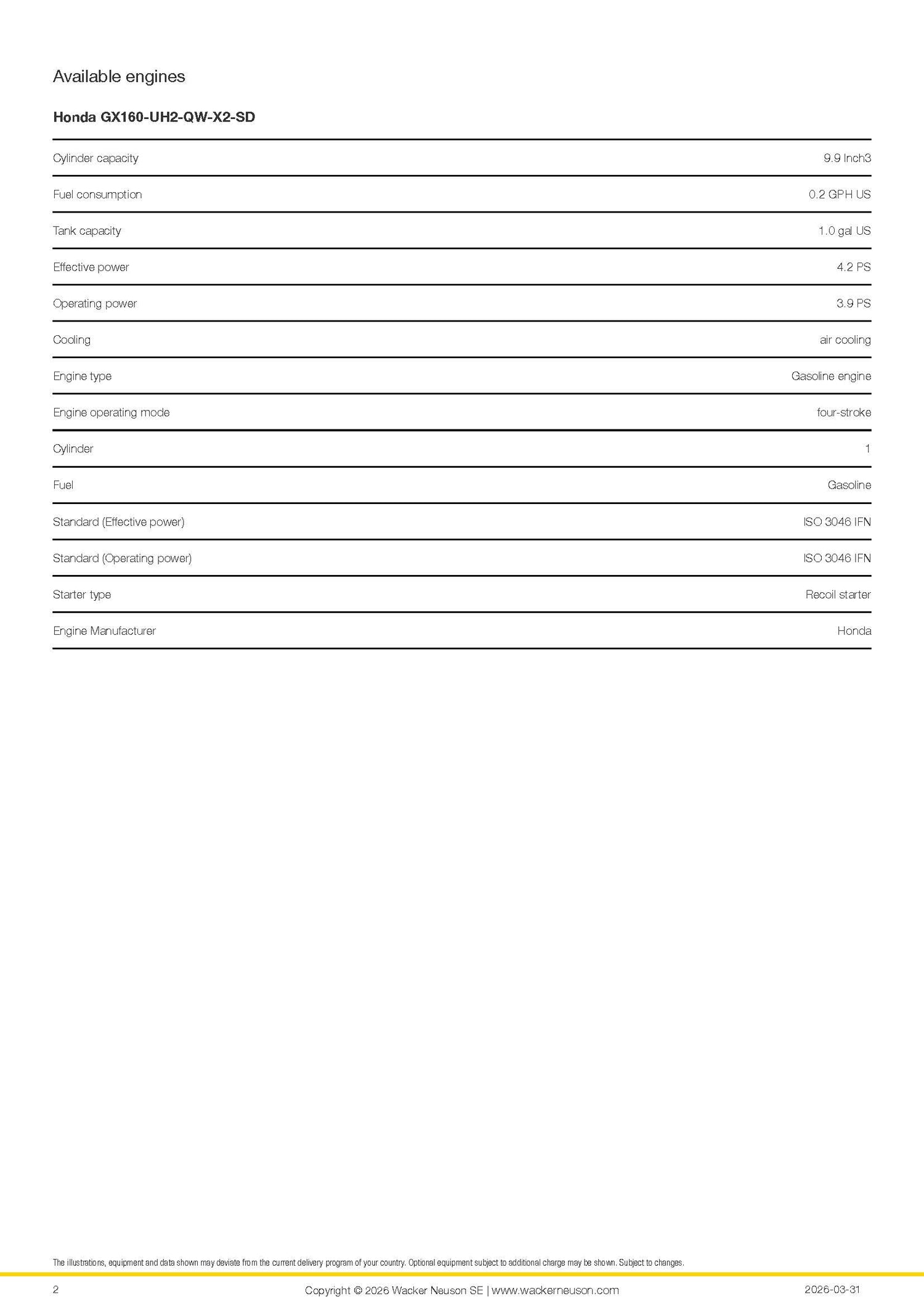

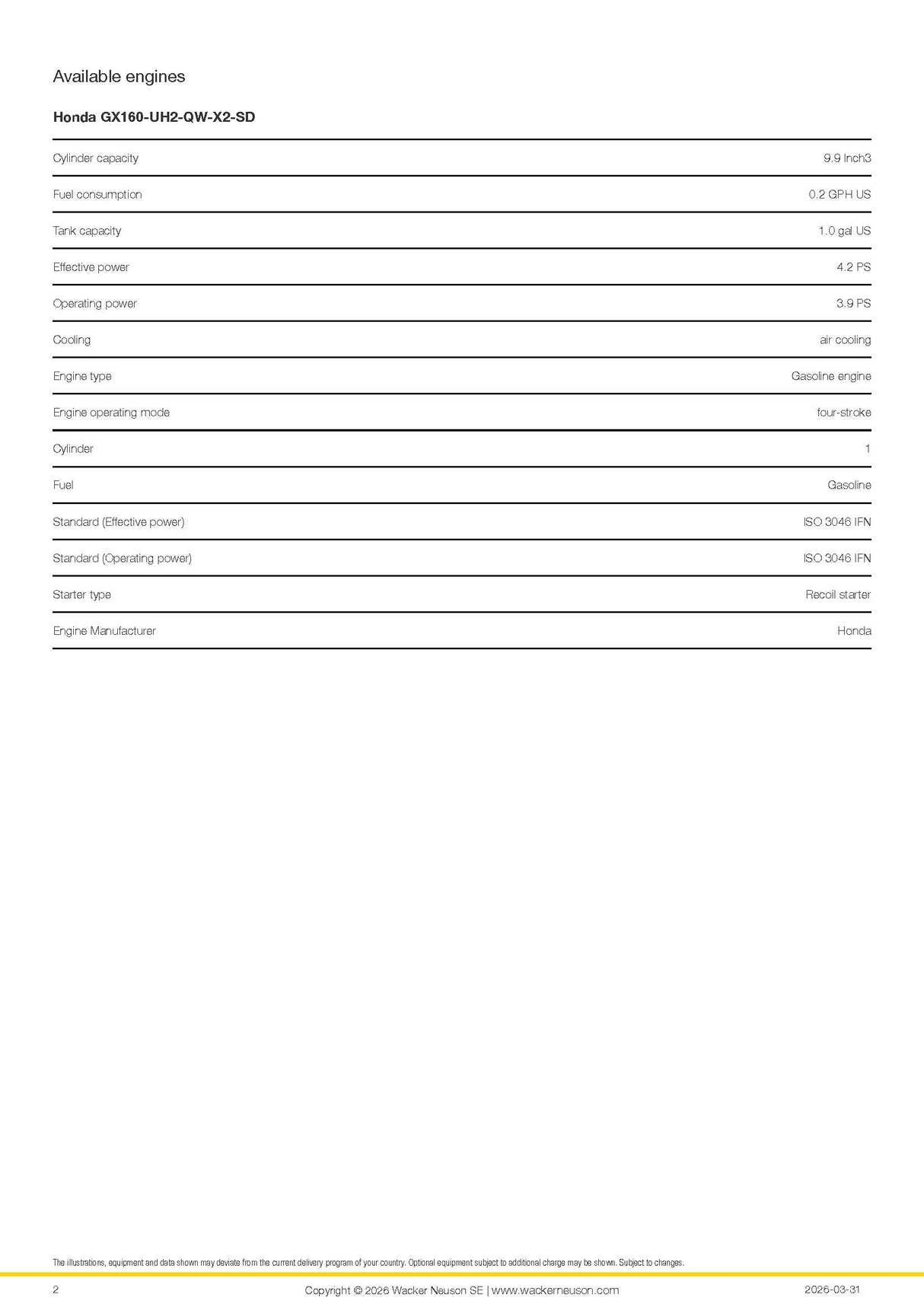

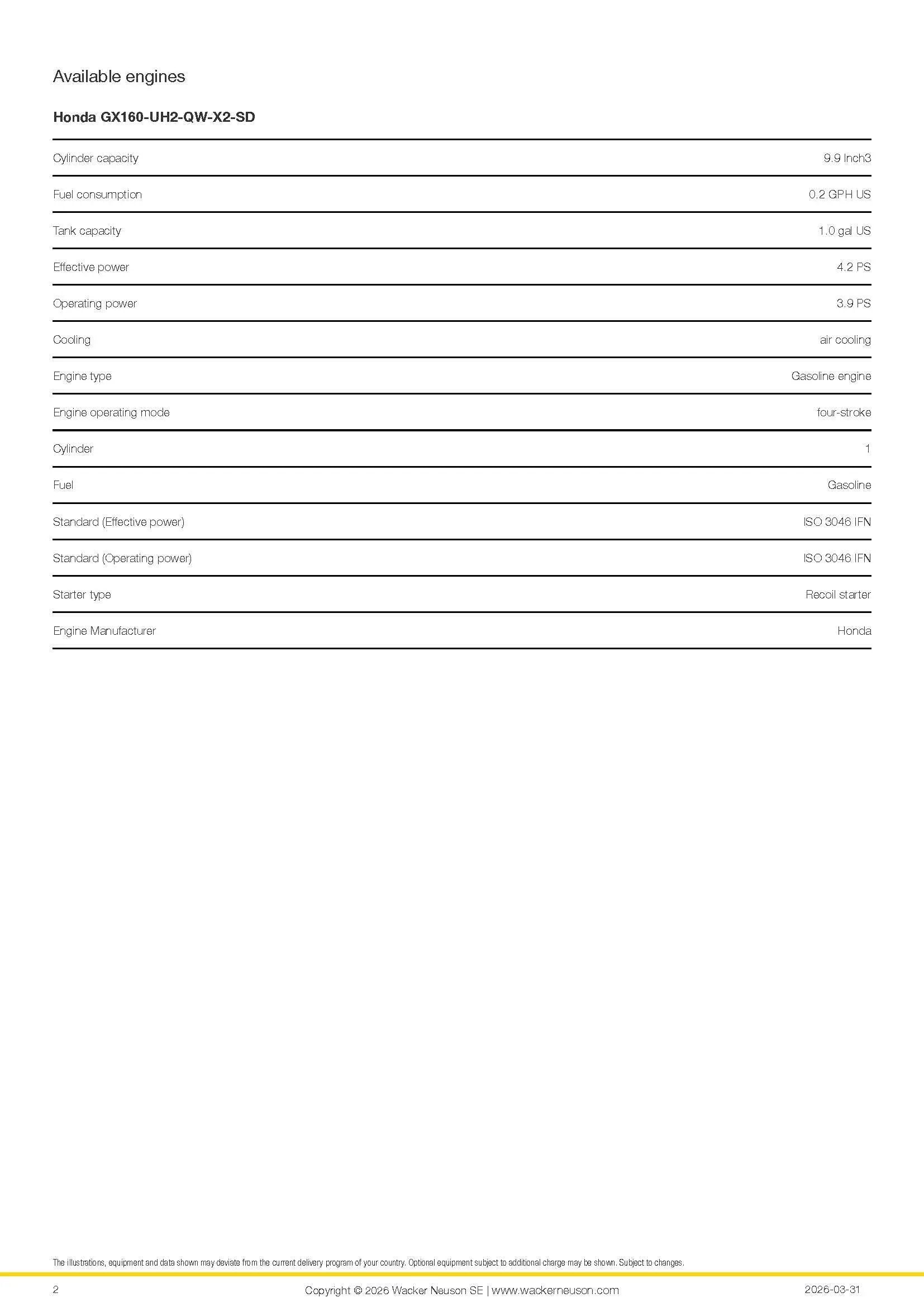

ENGINE Metric Imperial
Fuel management Carburettor Carburettor
Inclined position max. 20,0 ° 20,0 °
Engine operating mode four-stroke four-stroke
Operating Engine speed 3.520 1/min 3.520 1/min
Fuel consumption 0,80 L/Std 0,2 GPH US
Standard (Power max.) SAE J1349 SAE J1349
Standard (Effective power) ISO 3046 IFN ISO 3046 IFN
Nominal Engine speed 3.600 1/min, 2.800 1/min 3.600 1/min, 2.800 1/min
Electrode distance 0,70 - 0,80 mm 0,028 - 0,032 "
Oil filling max. 0,60 l 0,2 gal US
Effective power 3,1 kW, 3,1 kW 4,2 hp, 4,2 hp
Battery capacity (nom. value) 0 Ah 0 Ah
Air cleaner Dry air filter Dry air filter
Power rating max. 3,6 kW 4,8 hp
fuel type Gasoline Gasoline
Cooling air cooling air cooling
Exhaust-gas limit EPA4/08, EU Stage V EPA4/08, EU Stage V
Oil specification SAE 10W-30 SAE 10W-30
Starter battery Voltage 0 V 0 V
Engine speed (Power max.) 3.600 1/min 3.600 1/min
Starter type Recoil starter Recoil starter
Operating power 2,9 kW 3,9 hp
Oil filling min. 0,60 l 0,2 gal US
Engine type Gasoline engine Gasoline engine
Cylinder 1 1
Engine Manufacturer Honda Honda
Standard (Operating power) ISO 3046 IFN ISO 3046 IFN
Cylinder capacity 163 cm3 9,9 Inch3
Spark plug(s) NGK BP-6 ES NGK BP-6 ES
Oil volume incl. filter change 0,60 l 0,2 gal US

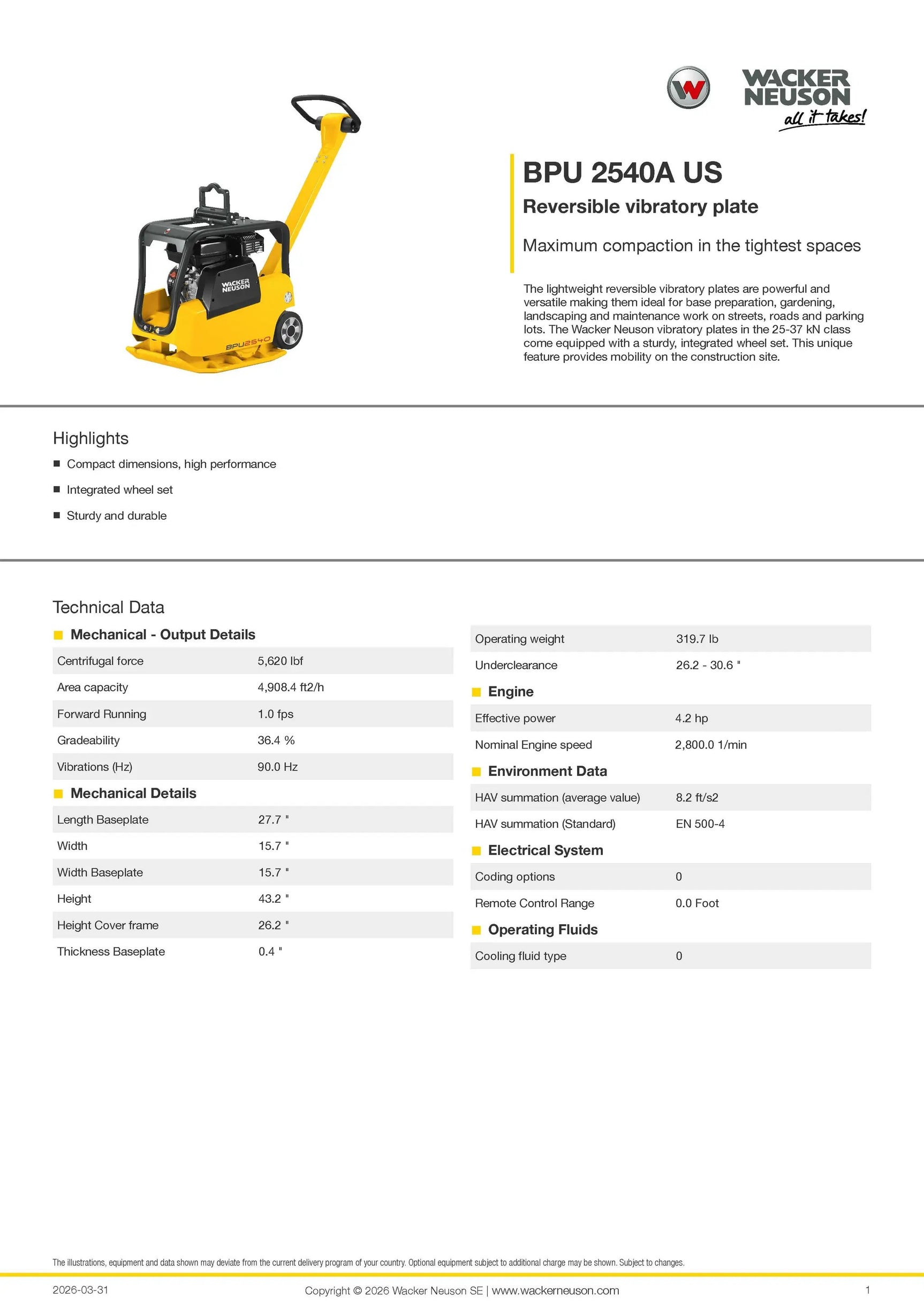

MECHANICAL - OUTPUT DETAILS Metric Imperial
Vibrations 5.400 1/min 5.400 1/min
Forward running 19,00 m/min 1,0 fps
Transmission FKK FKK
Gradeability 36,4 % 36,4 %
Centrifugal force 25,000 kN 5.620 lbf
Vibrations (Hz) 90,0 Hz 90,0 Hz
Area capacity 456 m2/h 4.908,4 ft2/h
HYDRAULIC Metric Imperial
Max. perm. hydraulic pressure 0,0 bar 0,0 psi
Operating pressure hydraulics 0,0 bar 0,0 psi
ELECTRICAL SYSTEM Metric Imperial
Remote Control Bat. Capacity 0 h 0 h
Coding options 0 0
Recommended Battery Typ 0 0
Charging Time 0,00 h 0,00 h
Remote Control Range 0 m 0,0 Foot
MECHANICAL DETAILS Metric Imperial
Lenght Drawbar in op. pos. 1.292 mm 50,9 "
Operating weight 145,0 kg 319,7 lb
Height 1.097 mm 43,2 "
Underclearance 666 - 776 mm 26,2 - 30,6 "
Width 400 mm 15,7 "
ENVIRONMENT DATA Metric Imperial
Operating temperature range -15 - 40 °C 5 - 104 °F
Sound level LpA (Standard) EN 500-4 EN 500-4
Sound power LWA, guaranteed 108,0 dB(A) 108,0 dB(A)
Storage temperature range -15 - 40 °C 5 - 104 °F
HAV summation (average value) 2,5 m/s2 8,2 ft/s2
Uncertainty in measurement HAV 0,5 m/s2 1,6 ft/s2
HAV summation (Standard) EN 500-4 EN 500-4
Sound level LpA 81,0 dB(A) 81,0 dB(A)
Sound power LWA (Standard) EN 500-4 EN 500-4
Sound power LWA, measured 107,0 dB(A) 107,0 dB(A)
