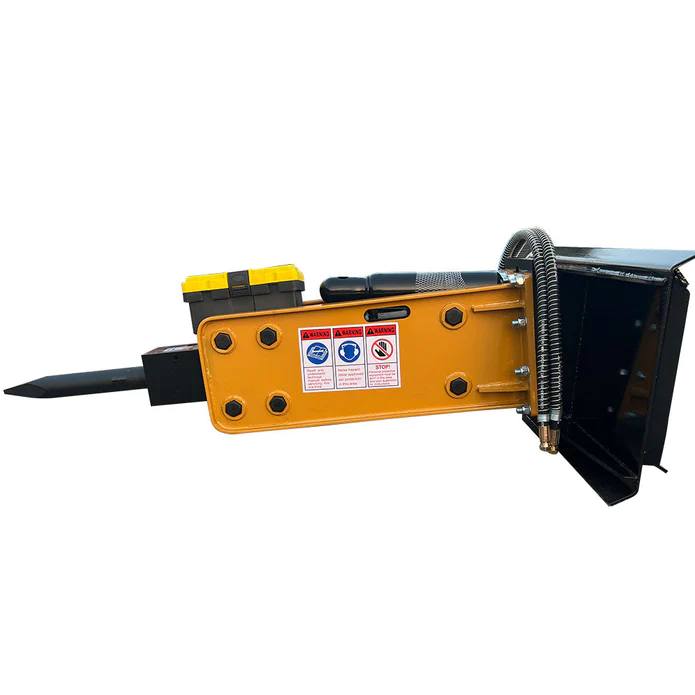

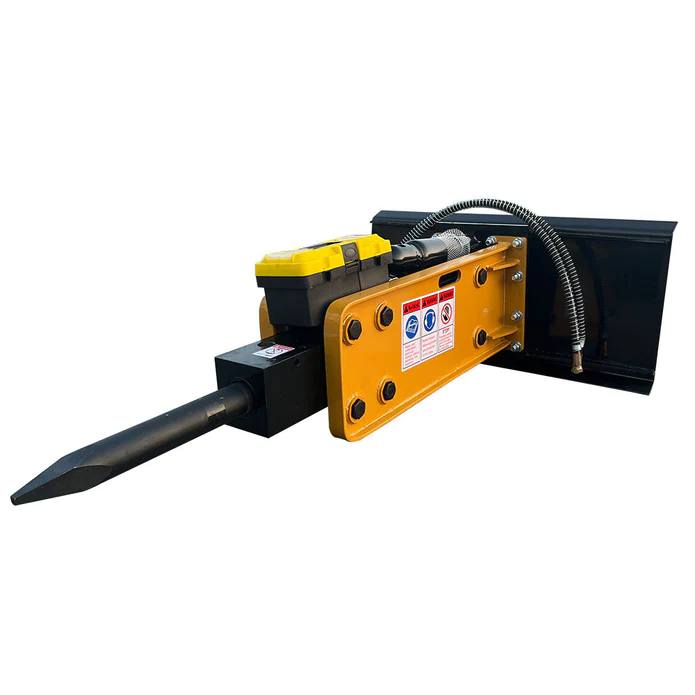

SKID STEER 680 SERIES CONCRETE BREAKER HAMMER ATTACHMENT

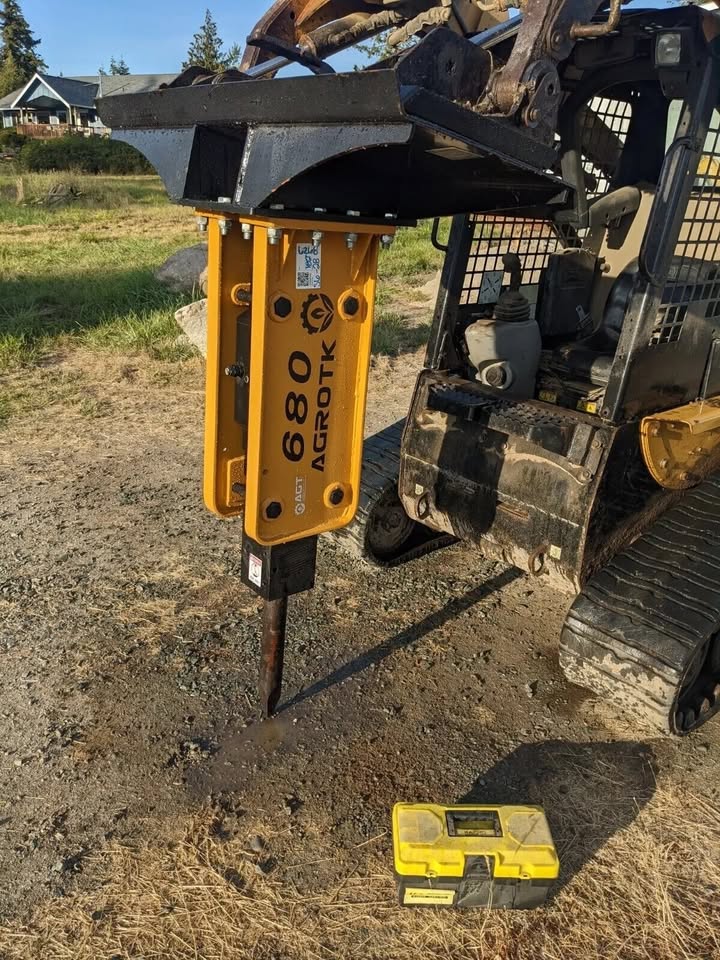

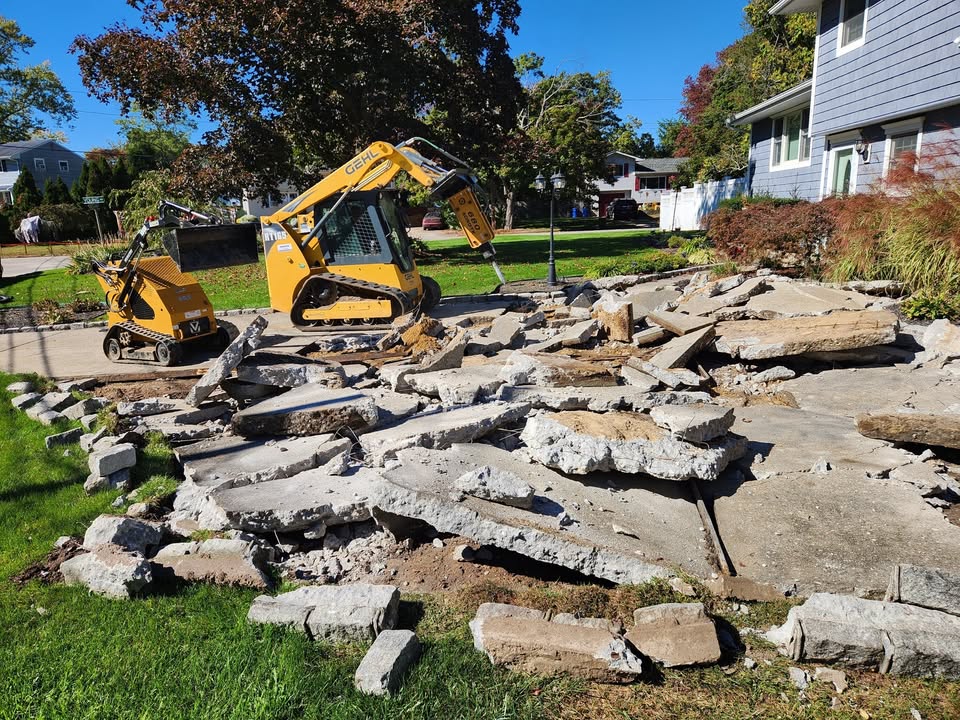

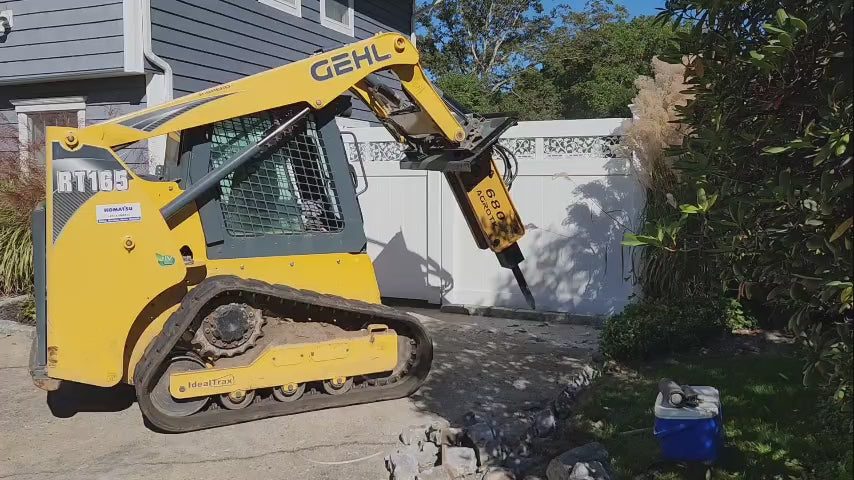

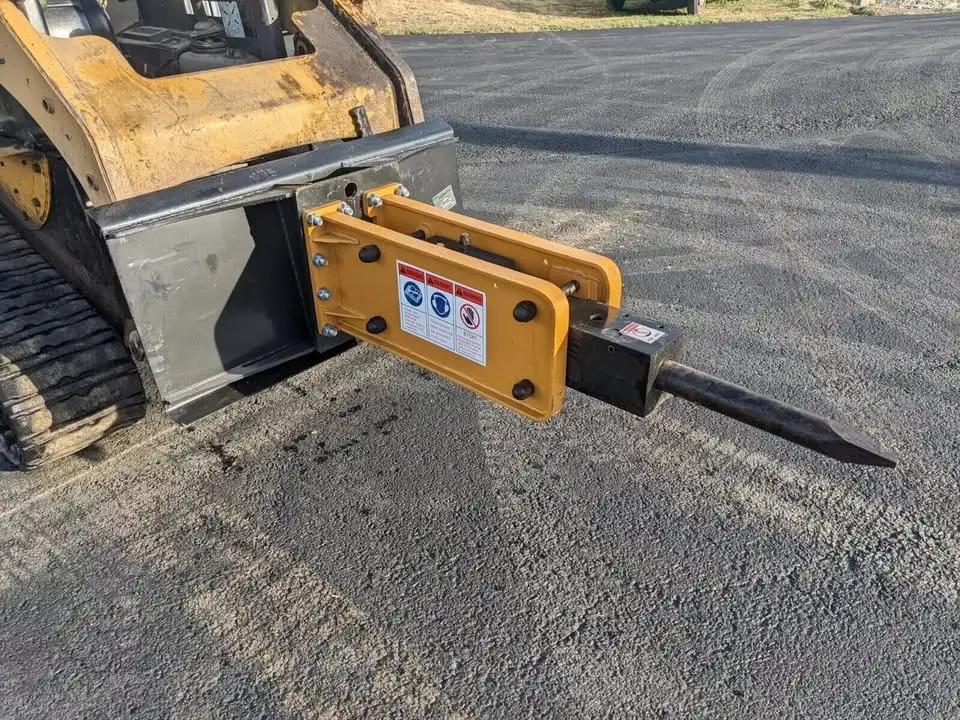

The AGT 680 Hammer Breaker is a ready-to-install concrete breaker attachment designed specifically for skid steer loaders. Delivered fully assembled, nitrogen-charged, and greased, this unit includes new high-density hydraulic lines manufactured locally with included couplers, allowing you to connect and operate out of the box. Field-tested units demonstrate reliable performance for demolition and excavation tasks.

Hydraulic Compatibility and Performance

To ensure optimal operation across various skid steer platforms, verify your machine matches these hydraulic specifications:

• Operating Weight: 550 lbs
• Working Pressure: 210 psi
• Operating Flow: 9.5-16 GPM (36-60 L/min)
• Impact Rate: 500-900 BPM
• Impact Energy: 600 joule

Mounting Dimensions and Specifications

This 680 Series concrete breaker utilizes standard skid steer mounting interfaces. Confirm these measurements match your loader's quick attach system before purchasing:

• Pin Center to Center: 8.8" (224mm)
• Ear Spacing (Inside): 10.2" (258mm)
• Ear Spacing (Outside): 11.4" (290mm)
• Chisel Diameter: 2.7" (68mm)
• Hydraulic Hose Diameter: 1/2"

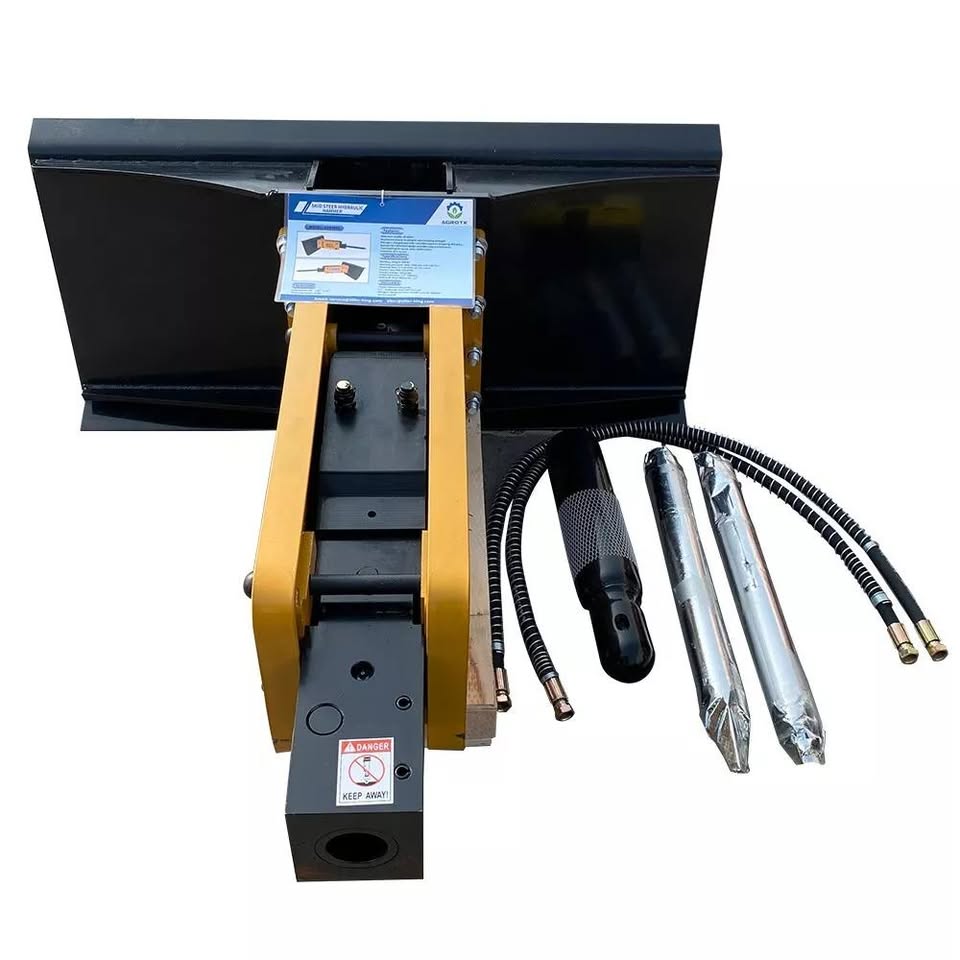

Each package ships weighing 870.82 lbs with dimensions of 50.39" × 24.01" × 23.62". Beyond the installed hydraulic breaker, this order includes a complete nitrogen charge kit, essential installation tools, and an extra chisel bit.
