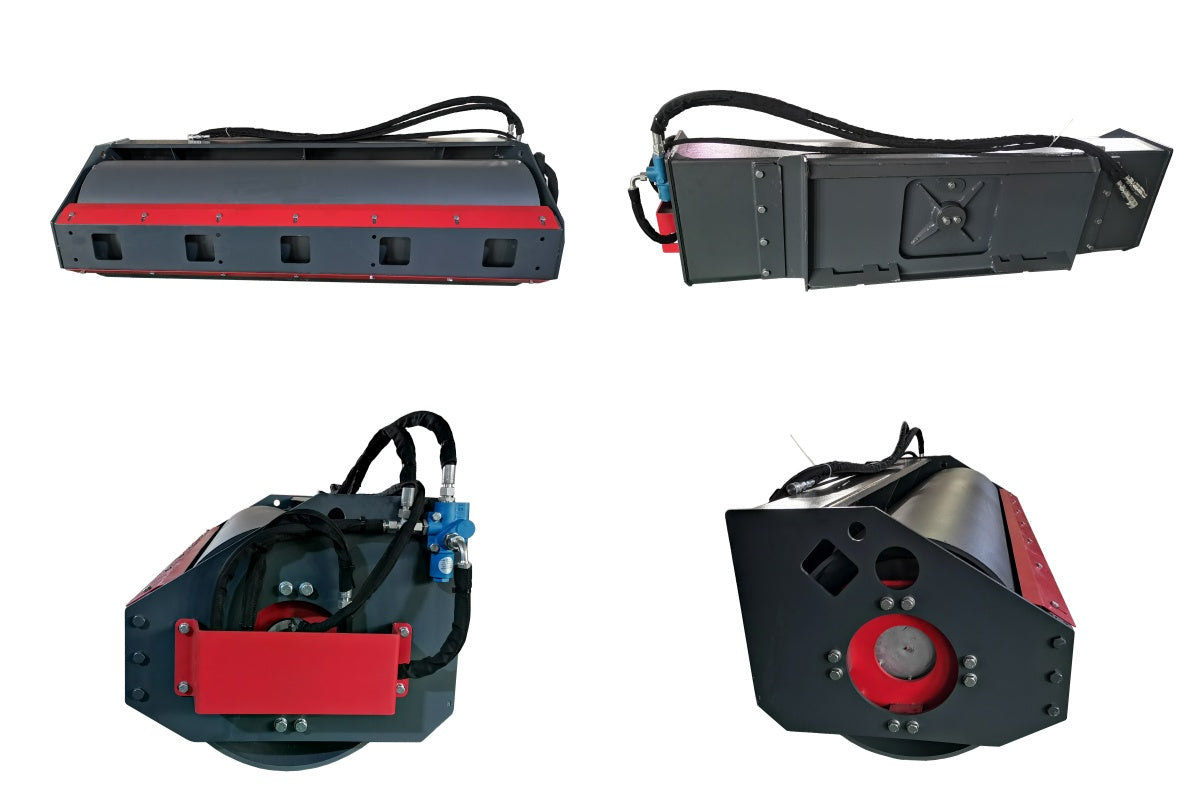

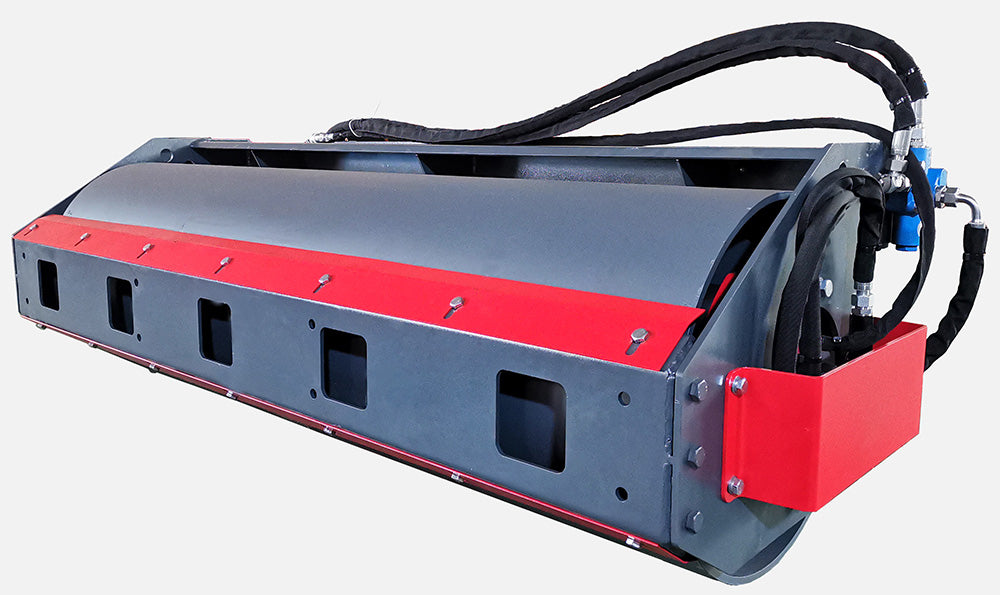

RAYTREE 76 Inch Vibratory Roller For Skid Steer With Case Drain

The Raytree 76" vibratory roller delivers effective compaction capabilities for direct mounting on skid steer loaders. Built as a heavy-duty HD unit, this attachment weighs 1,790 pounds to maintain consistent ground pressure across uneven terrain. The design incorporates a 76-inch vibrating drum width contained within a frame measuring 84 inches overall.

Physical Dimensions and Material Profile

Accurate site estimation requires precise dimensional data. The assembly measures 84.6 inches in length, 33.5 inches in width, and stands 25.7 inches tall. These specifications account for the full structure, excluding the skid steer lift arm linkage points. The compact profile facilitates movement around foundations and tight excavated areas where wider rollers cannot operate.

Hydraulic System Requirements

Proper operation relies on matching your machine's hydraulic capacity. This vibratory roller requires a standard flow setting capable of delivering 10 to 17 gallons per minute (GPM). Crucially, the skid steer must support a case drain circuit. The internal hydraulic motor necessitates this return path to evacuate pressure and prevent overheating during continuous vibration cycles.

• Flow Rate: 10-17 GPM
• Coupler Type: 1/2-inch Flat Face
• Total Weight: 1,790 lbs
• Configuration: Standard Flow / Case Drain Required

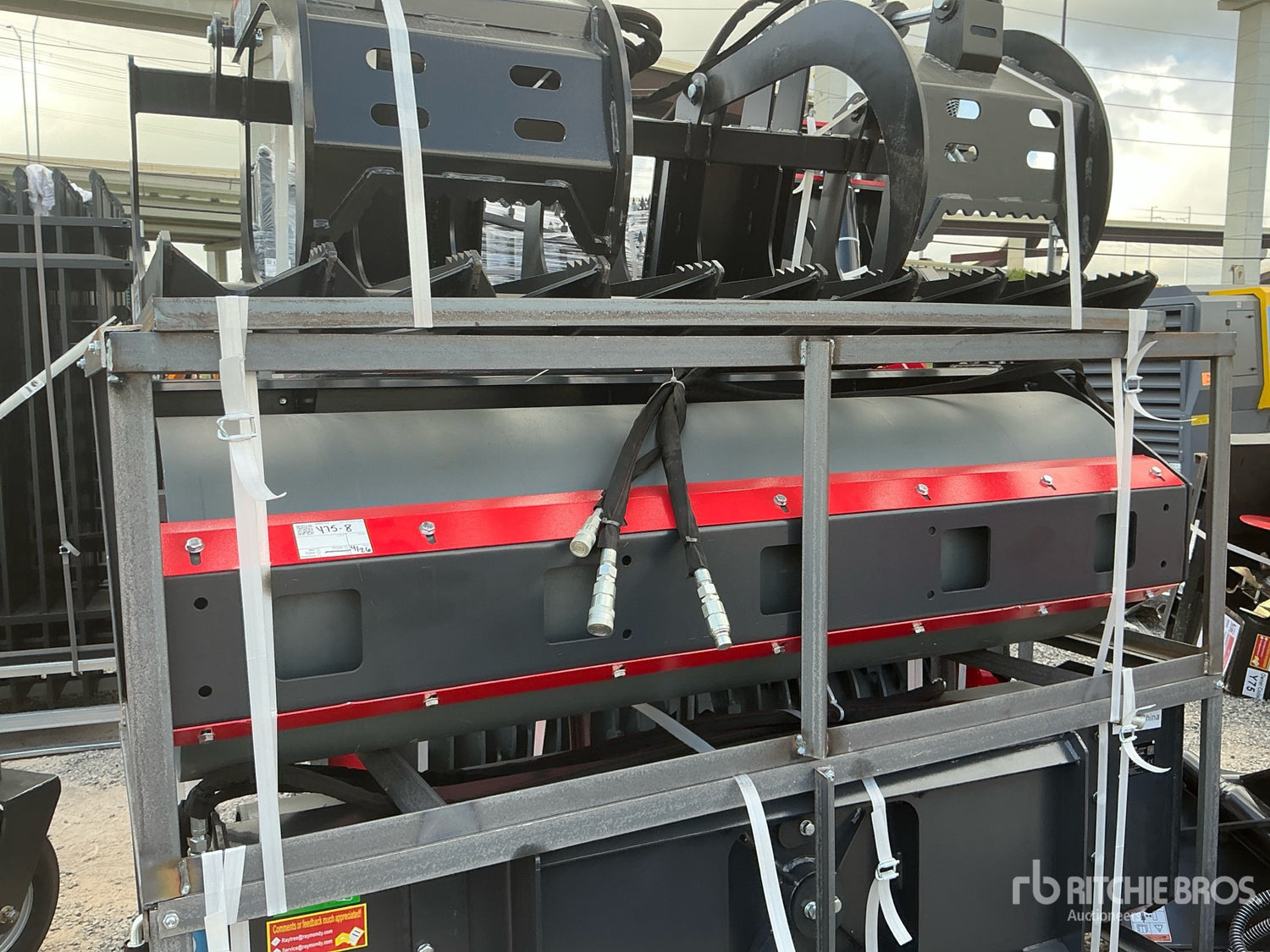

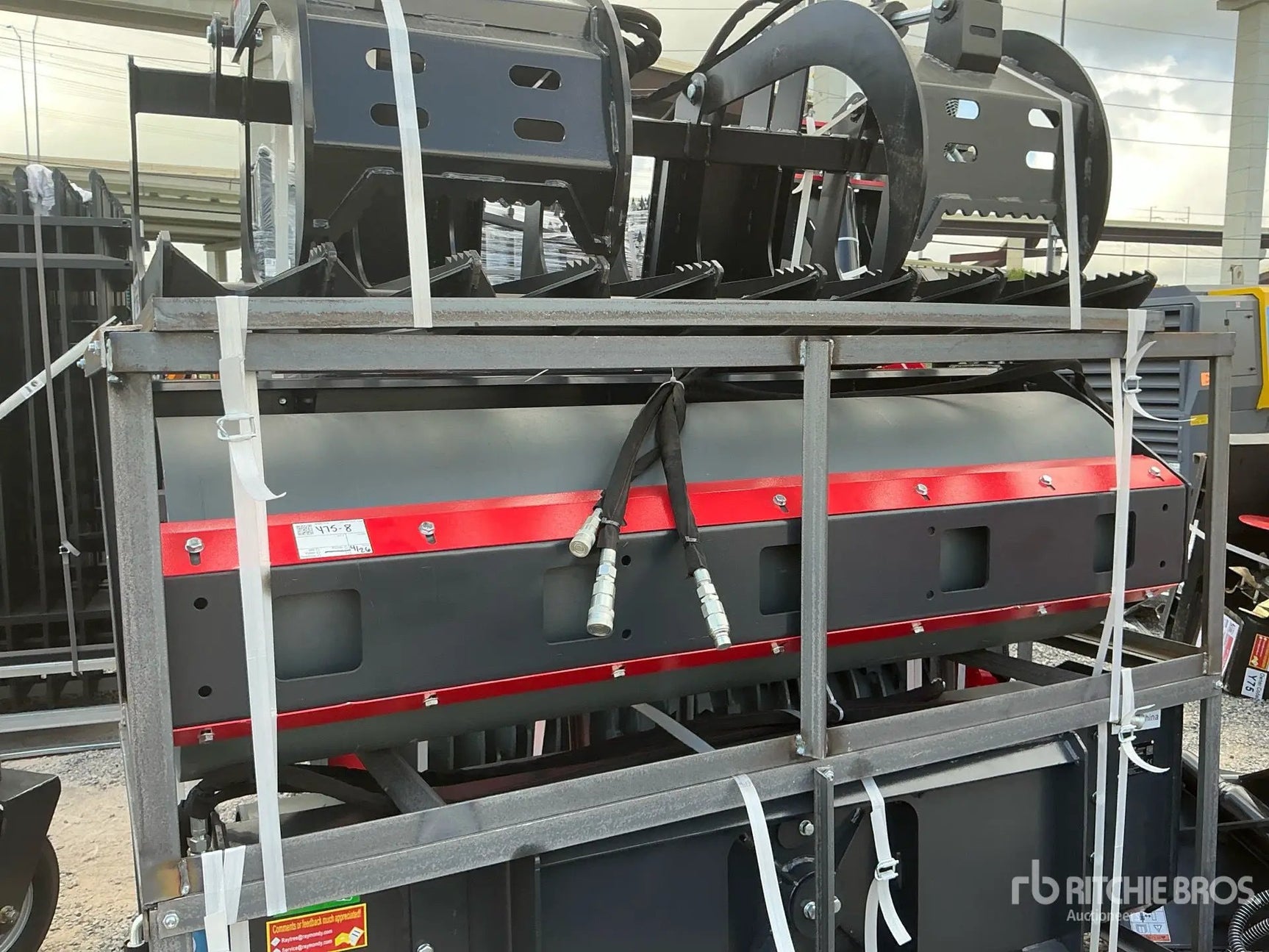

The package is shipped new with all primary connection hardware included. 1/2-inch flat face couplers are secured to the hydraulic ports, allowing immediate integration with matching skid steer lines. This setup enables operators to begin grading and leveling tasks without sourcing external adapters.
