Ag Rock Hound Landscape Rake 72 Inch Demo Unit Skid Steer

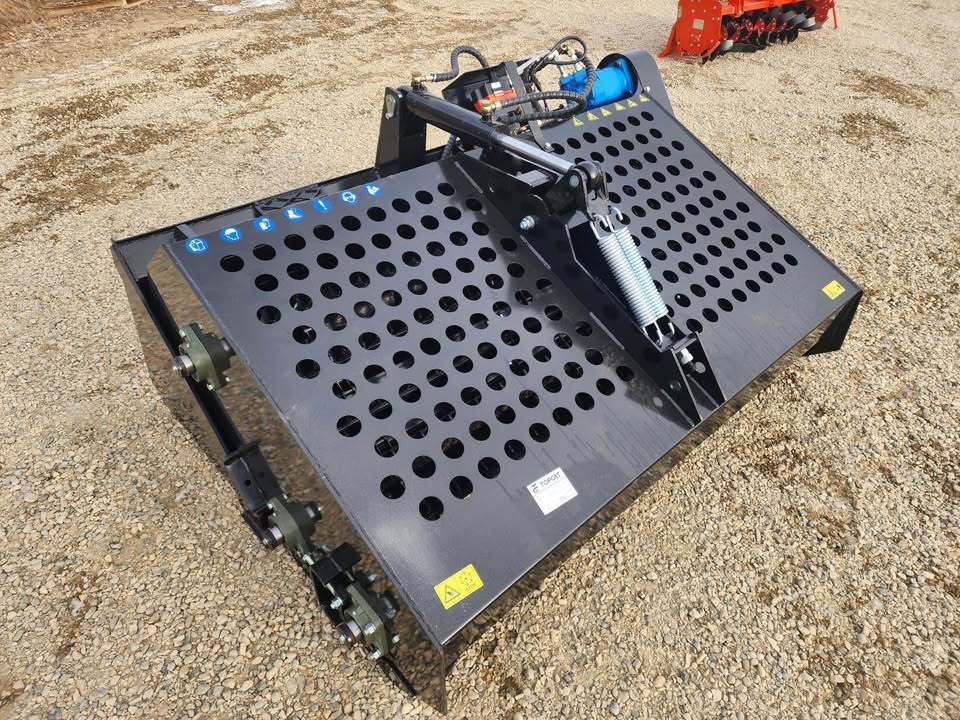

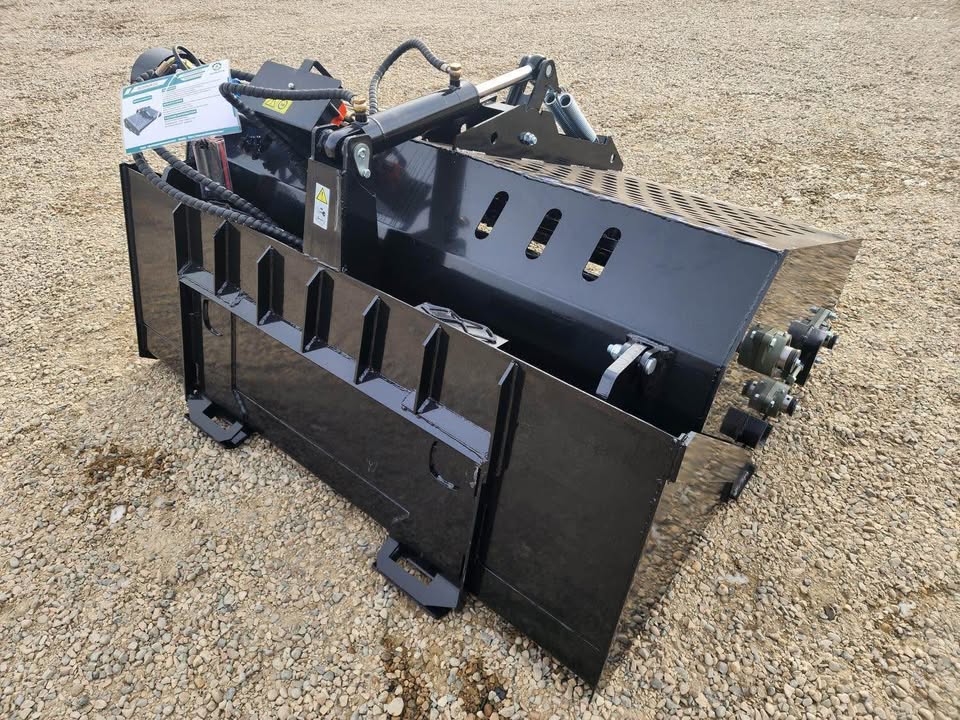

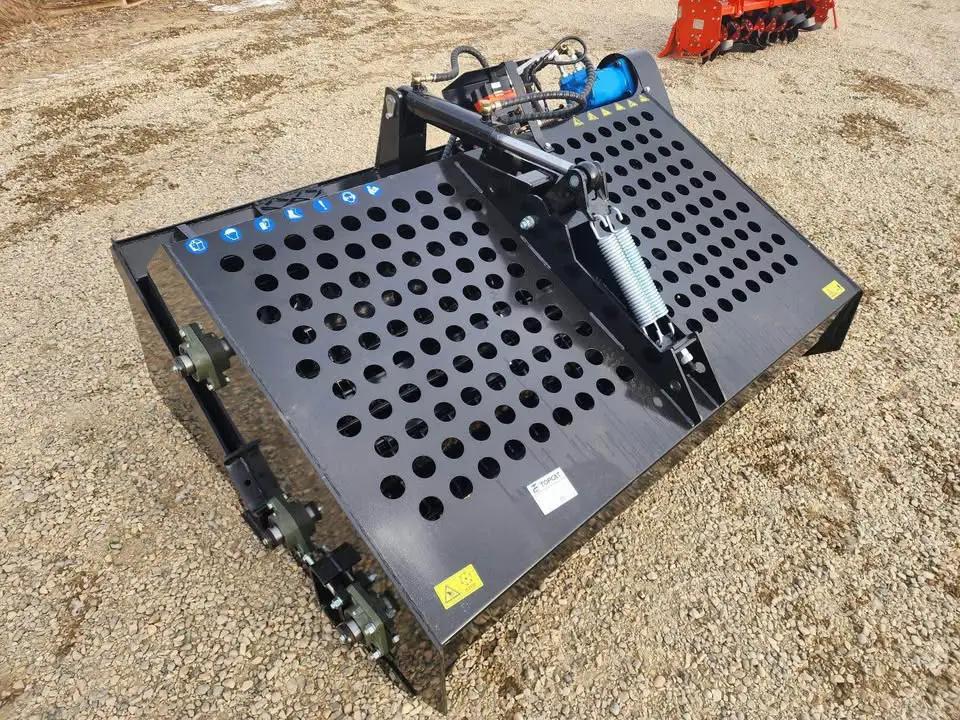

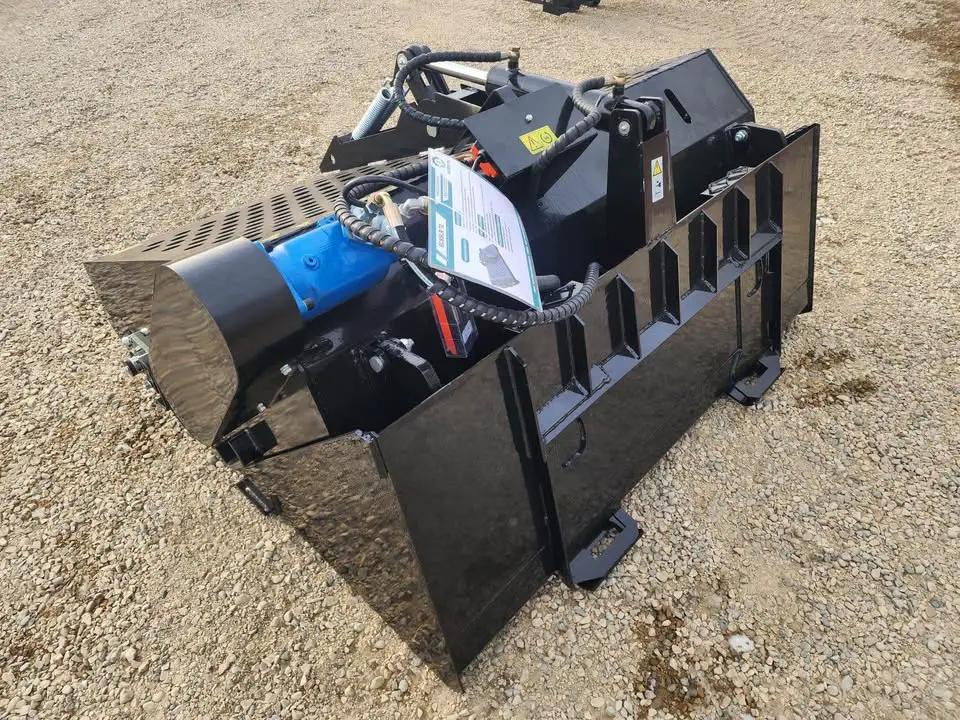

The New AGT Rock Hound Landscape Rake 72” integrates grading and debris removal into a single compact unit designed for skid steer loaders. This demo unit features a quick attach skid steer plate and flat face couplers for secure, rapid installation on compatible machinery. An integrated electrical connection paired with a remote control system allows operators to engage the rake and manage the hopper from a safe distance.

Surface Grooming and Rock Removal

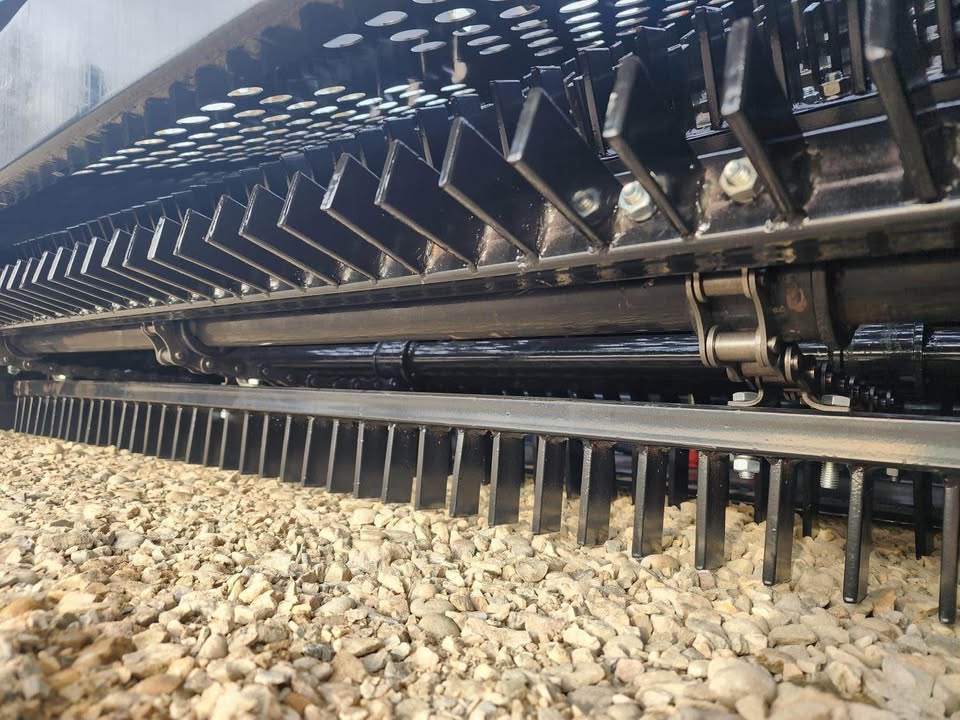

With a working width of 72 inches, the rake smooths terrain for seeding or sod installation. The hydraulic system drives 12 racks carrying a total of 456 teeth, providing the force required to break up hard clods and level uneven soil profiles. During operation, the teeth screen out larger objects, picking up rocks ranging from 3/4 inch to 6 inches in diameter. These materials drop into a central hopper instead of being displaced.

• Debris Collection: Collects rocks and debris in hoppers for efficient transport.
• Rapid Disposal: Dumps collected debris quickly and easily via hydraulic tilt.
• Soil Preparation: Grooms and finishes soil, breaking up clods for optimal seeding results.

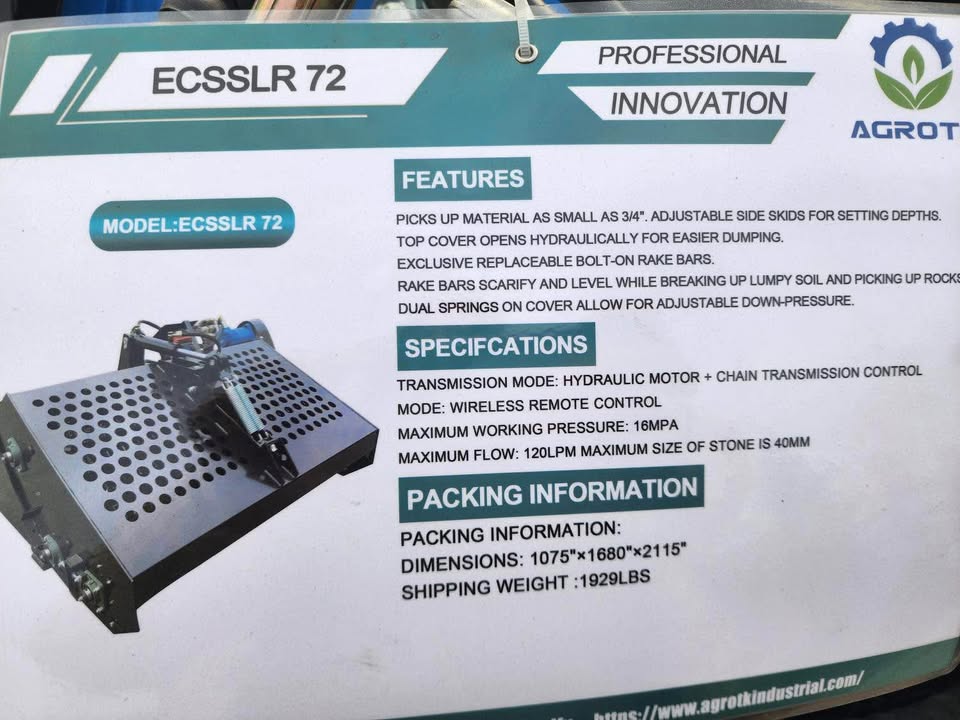

Technical Specifications

Matching the hydraulics of most mid-range skid steers, this attachment operates within specific fluid and pressure limits. A capacity of 0.4 m³ per cycle reduces the number of loading trips required on-site. Operators must verify their skid steer supports the total unit mass and meets the hydraulic demand.

• Model Number: ECSSLR72
• Weight: 1929.04 lbs
• Dimensions: 83'' × 66'' × 42''
• Bucket Capacity: 0.4 m³
• Recommended Flow: 60-120 L/min
• Working Pressure: 14-20 MPa
