2026 Wacker Neuson Sm100 Mini Skid Steer Loader Demo

2026 Wacker Neuson SM100 Compact Track Loader Specification

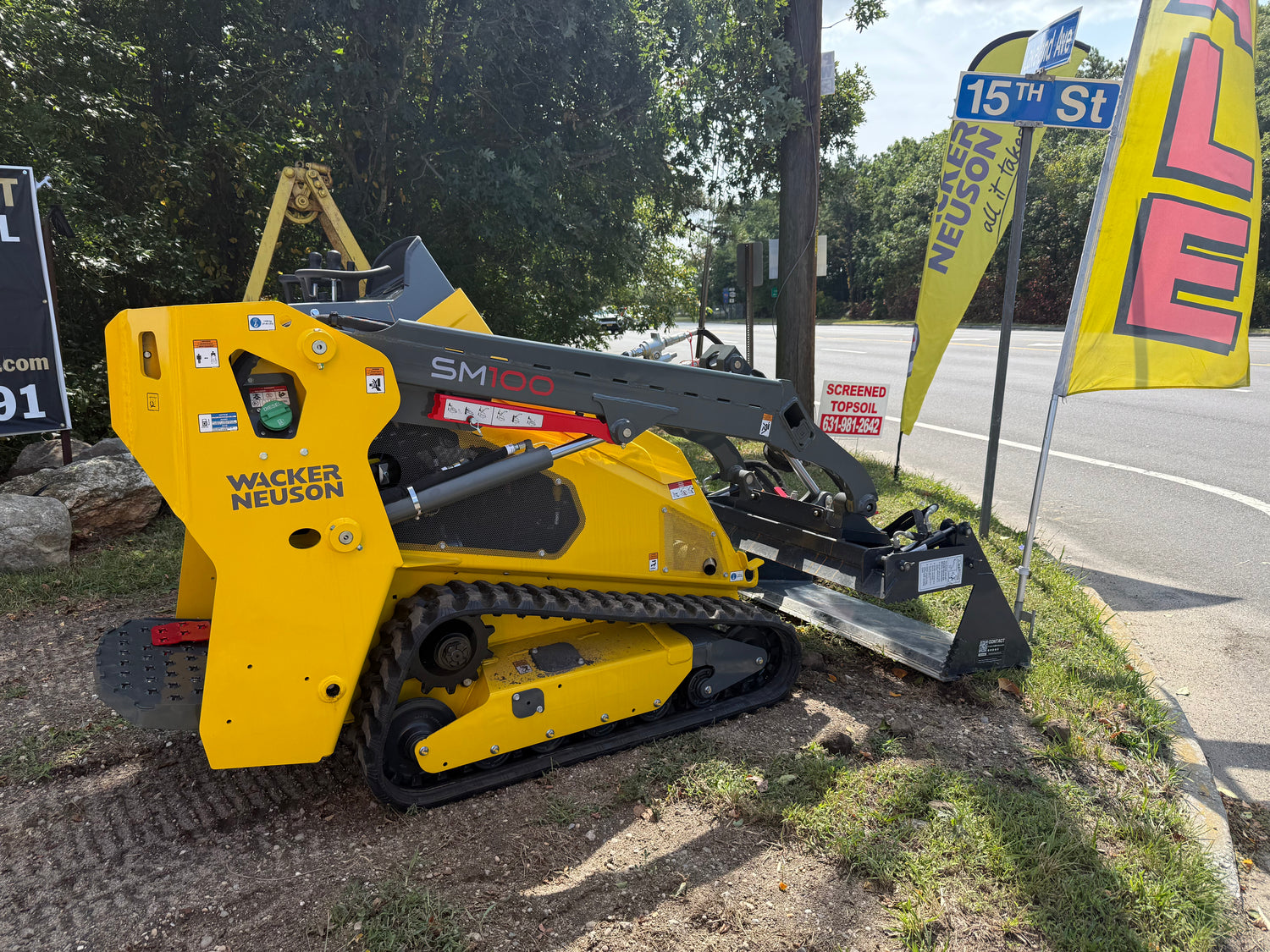

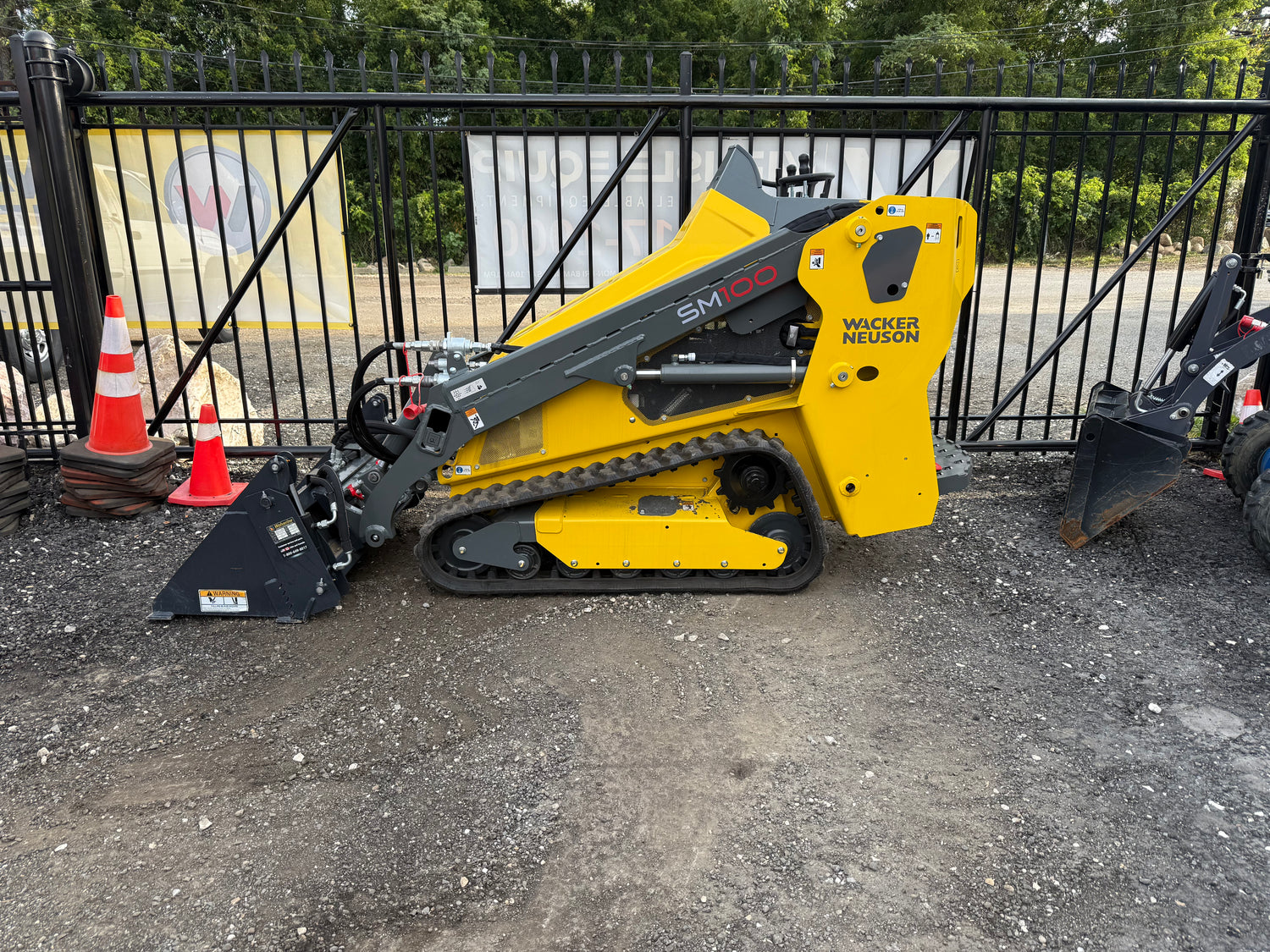

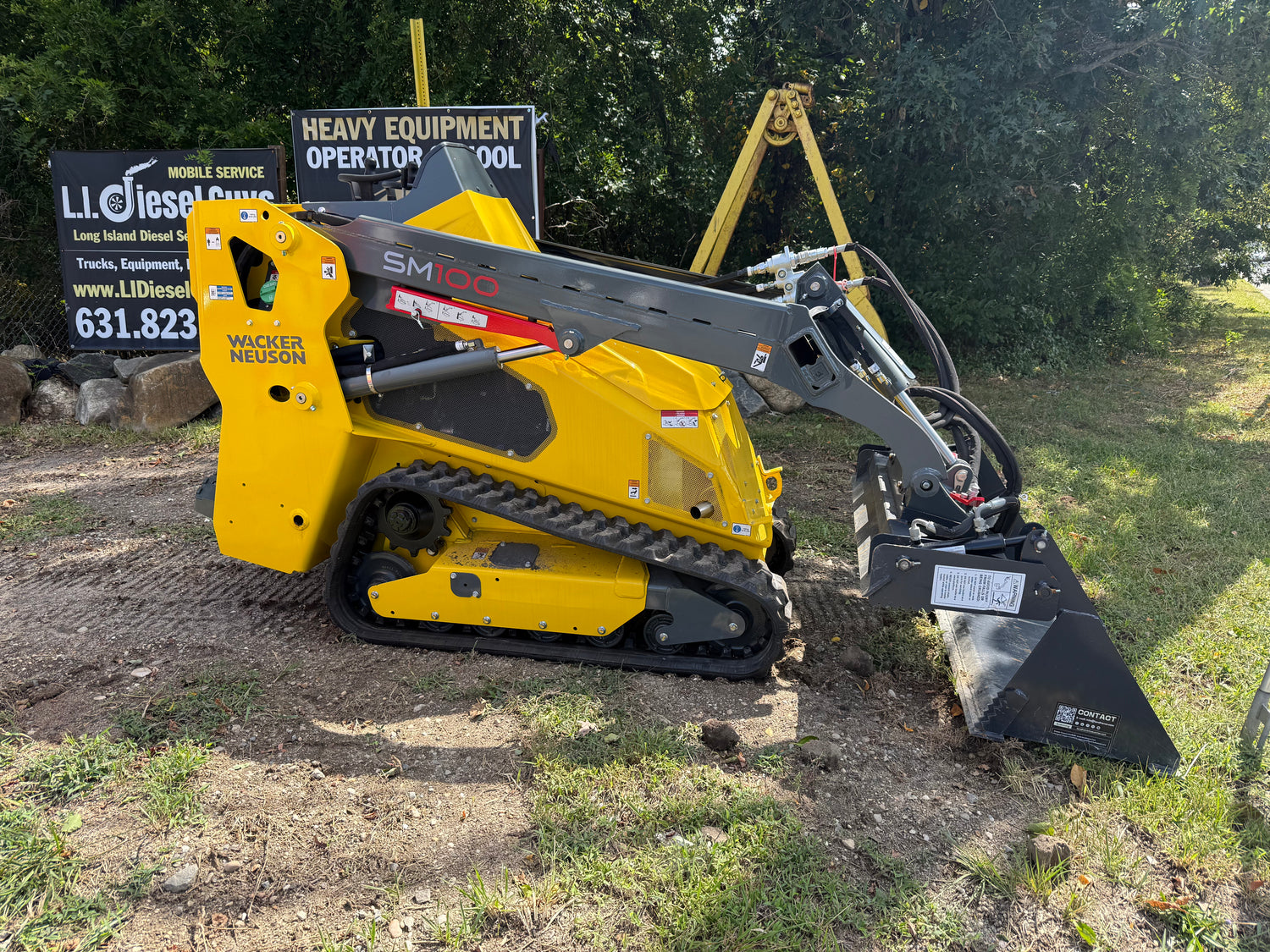

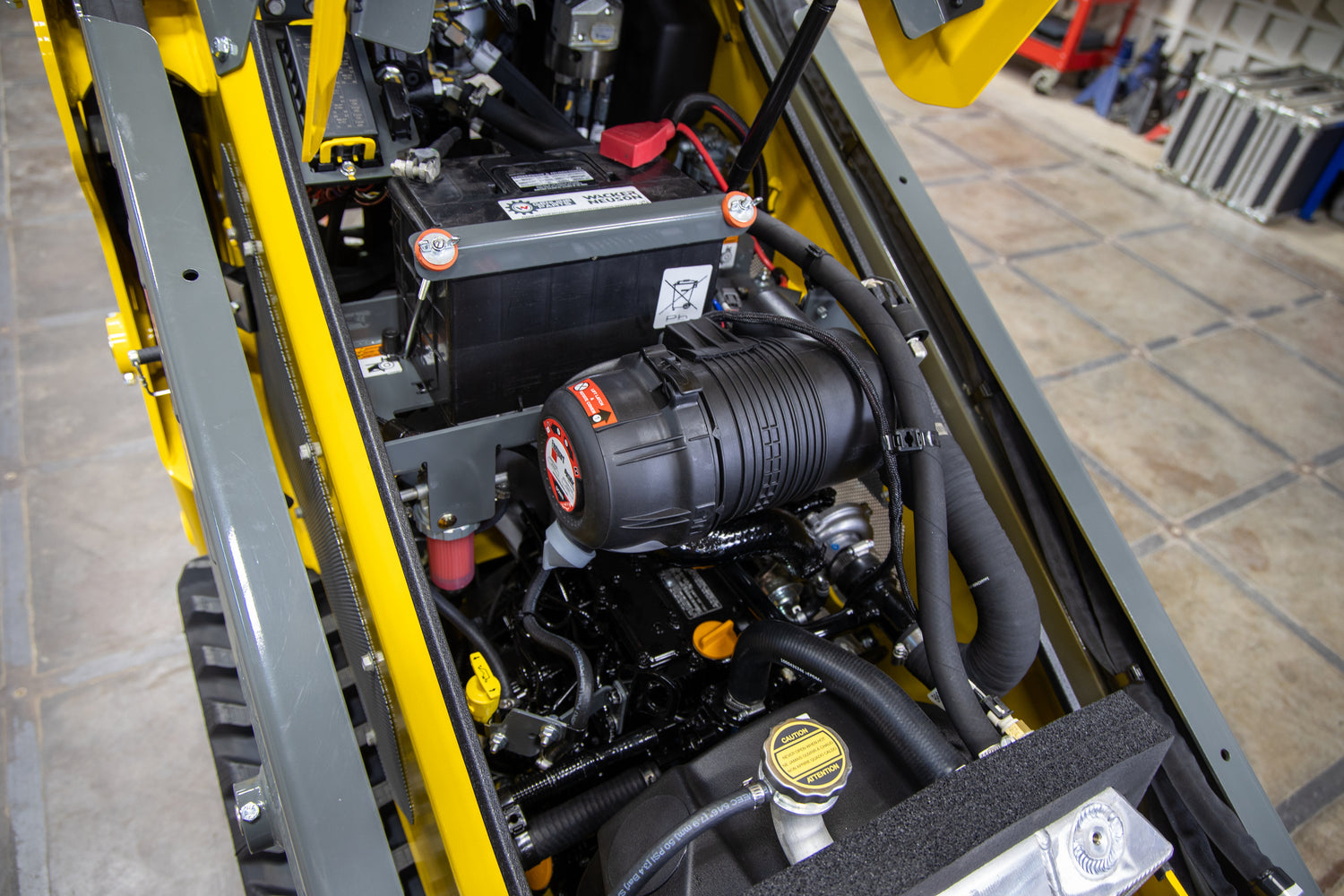

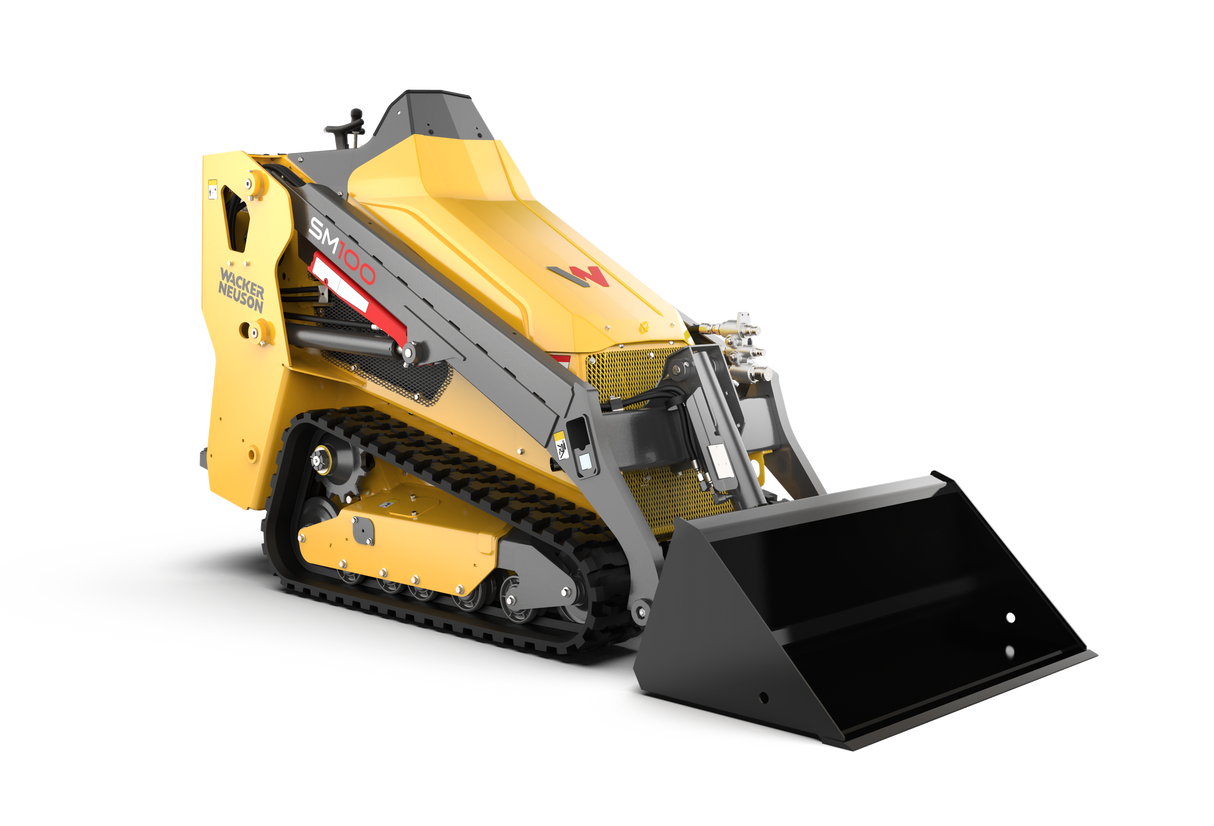

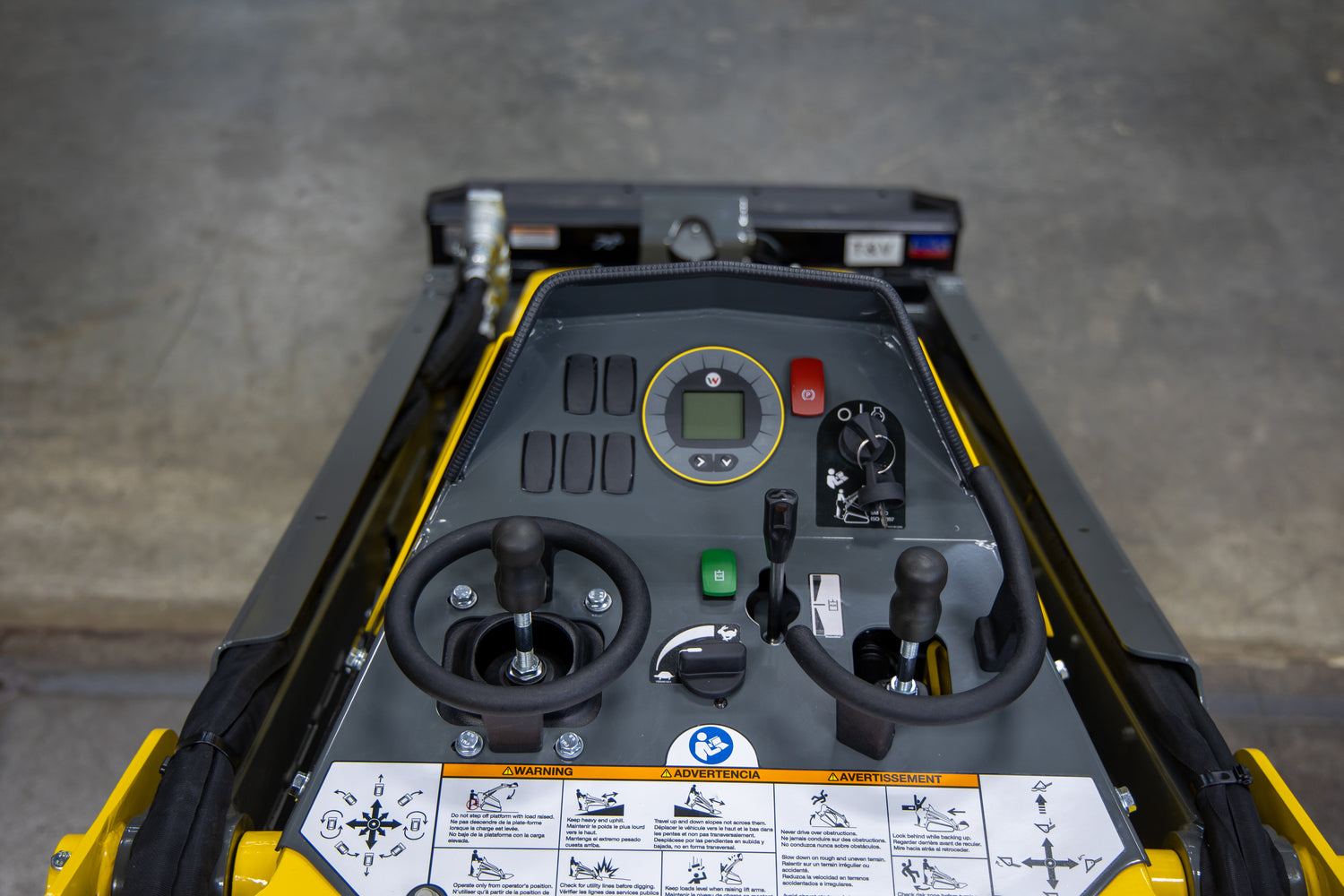

This 2026 Wacker Neuson SM100 mini skid steer operates as a compact track loader powered by a robust Yanmar 25hp turbo diesel engine. Designed as a used demo unit, it combines pilot controls with a specialized track system for minimal ground pressure, ensuring superior traction in muddy sites or finished floors.

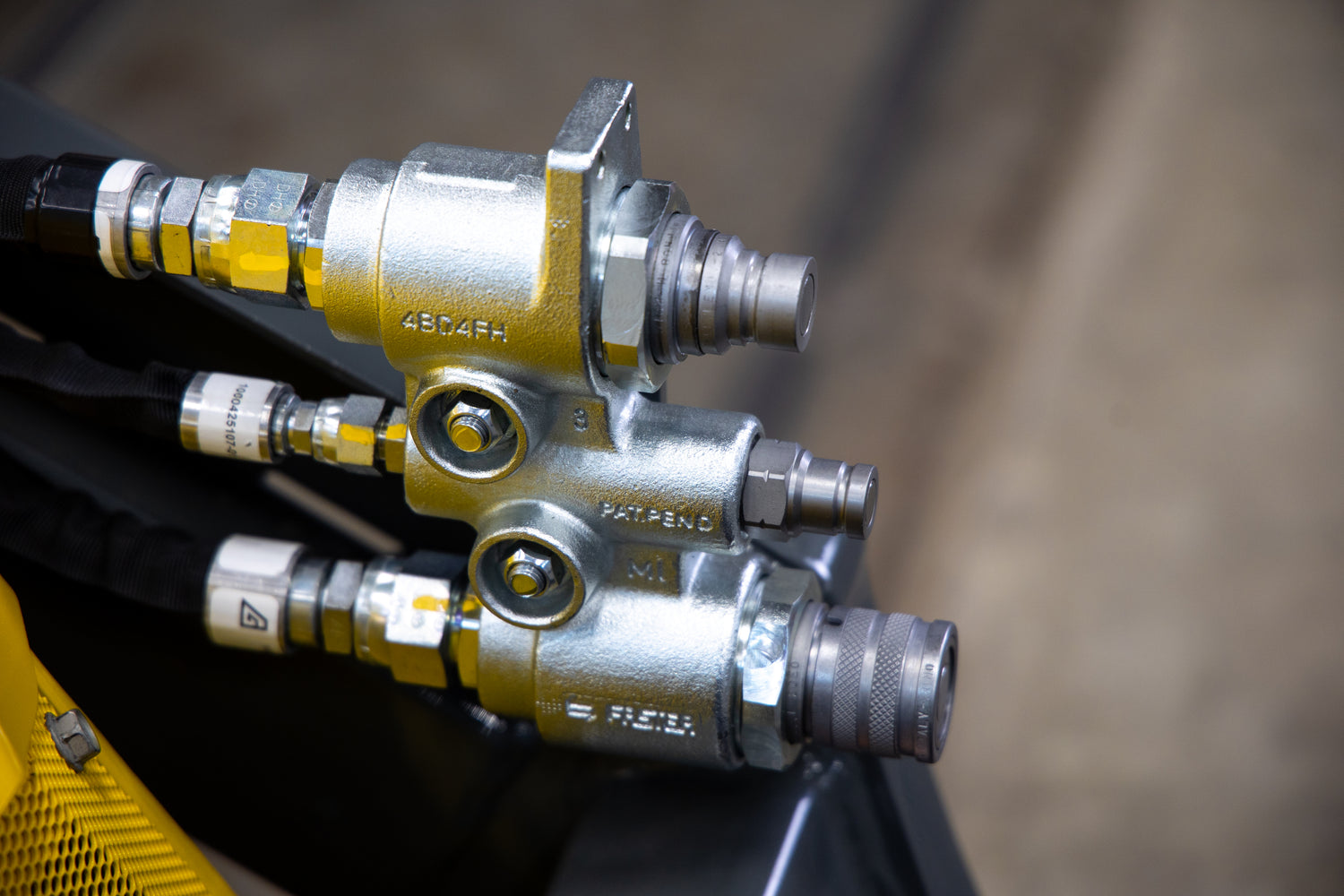

The drive configuration prioritizes efficiency and reach. This engine runs at a top speed of 5.2 mph while delivering 13 gpm of hydraulic flow for tool attachment capability. Torque reaches 62.6 lbf at 1800 rpm from the 3-cylinder platform. Integrated systems include a large 14.1-gallon fuel tank for uninterrupted single-shift operation on job sites.

Critical Dimensions and Capacity

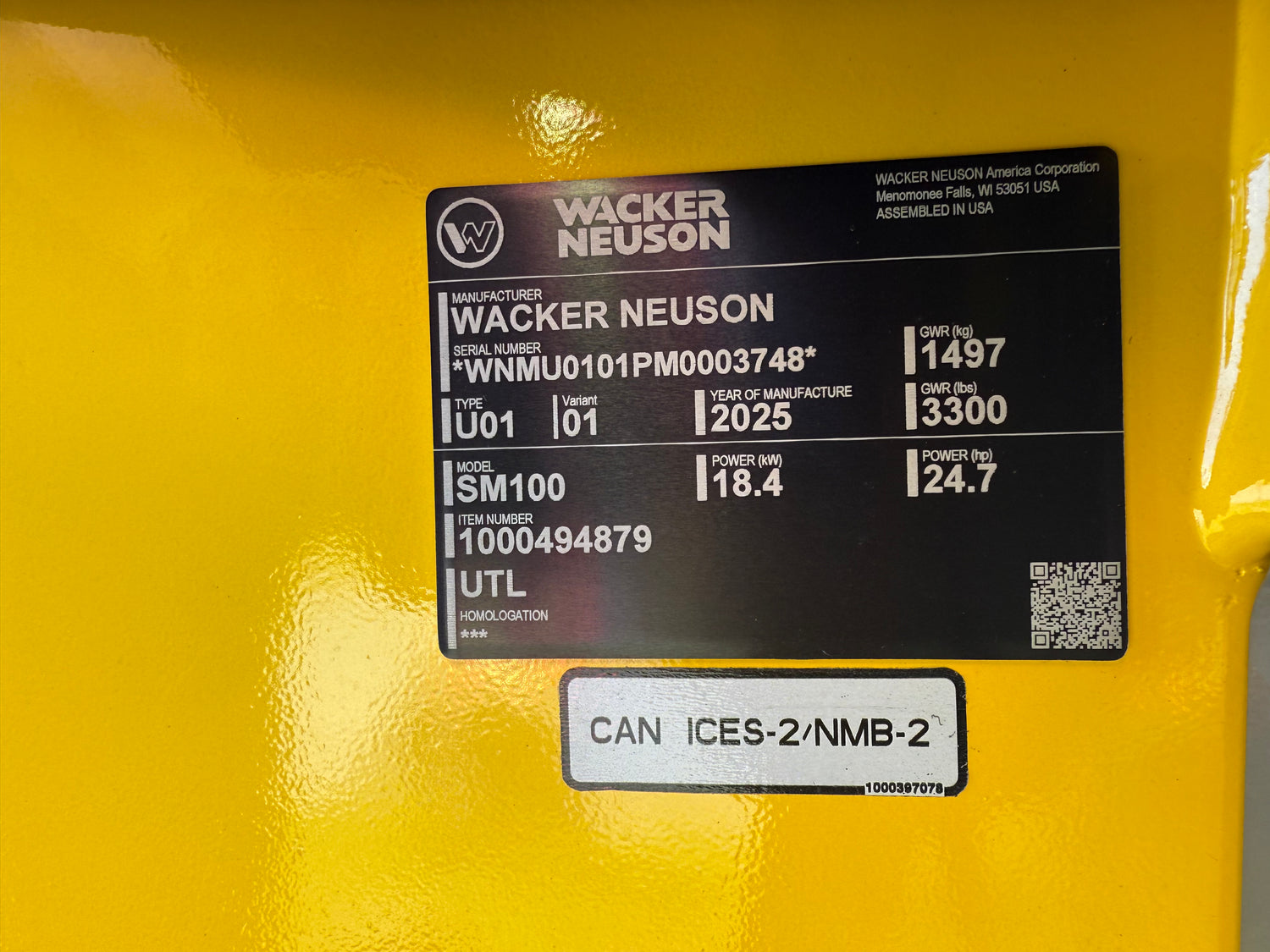

• Operating Weight: 3,300 lbs gross vehicle mass
• Tip Load: 2,855 lbs rated lift capacity
• Ground Clearance: 7.8 inches undercarriage height
• Hinge Pin Height: 85.7 inches maximum bucket reach
• Total Width: 35.5 inches for standard gate access

Maneuvering within industrial facilities requires specific clearance metrics. With a 35.5-inch width, the machine navigates tight corridors, while the 7.8-inch ground clearance allows traversal over debris and uneven concrete. The chassis height sits at 58.2 inches, contributing to a low profile stability.

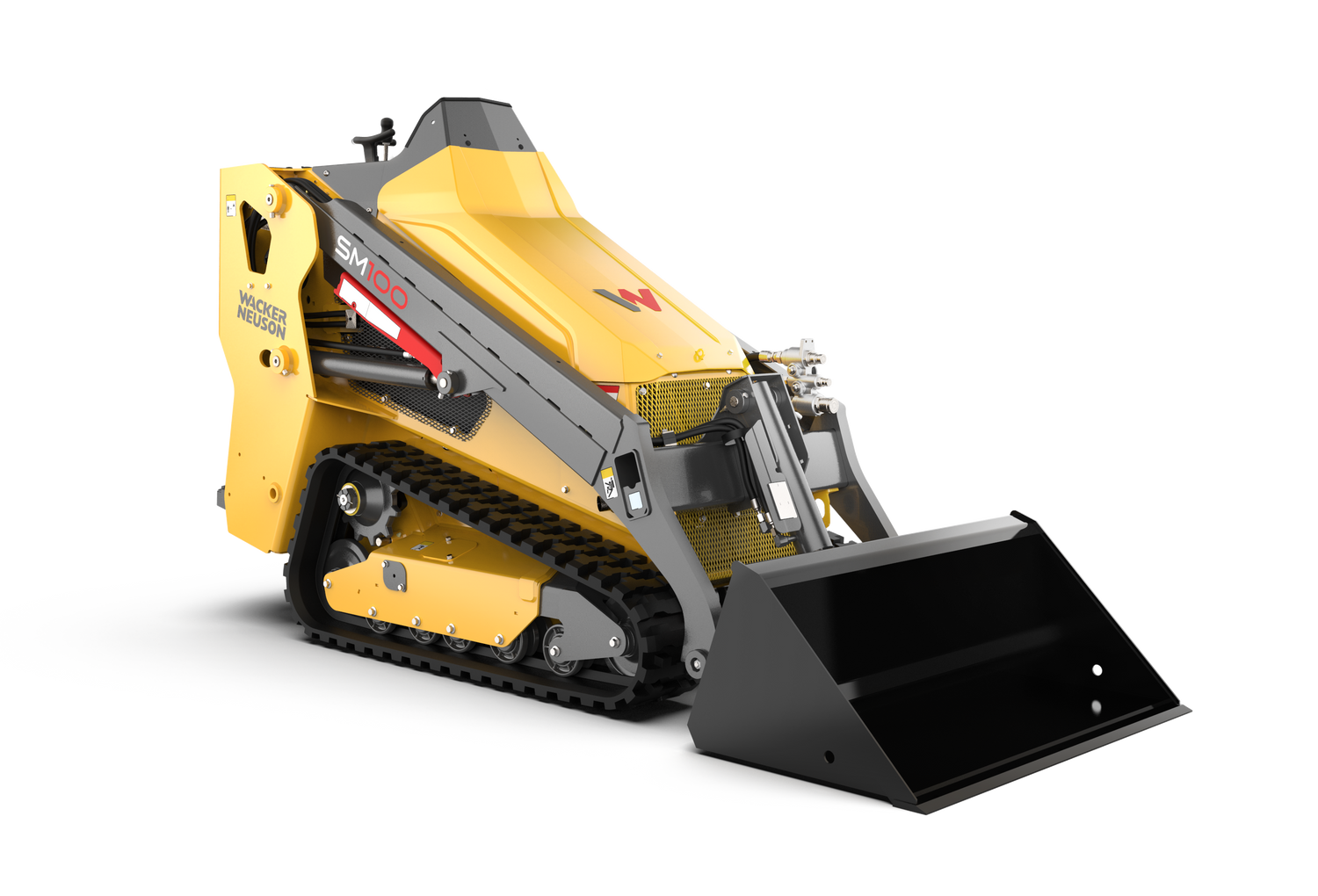

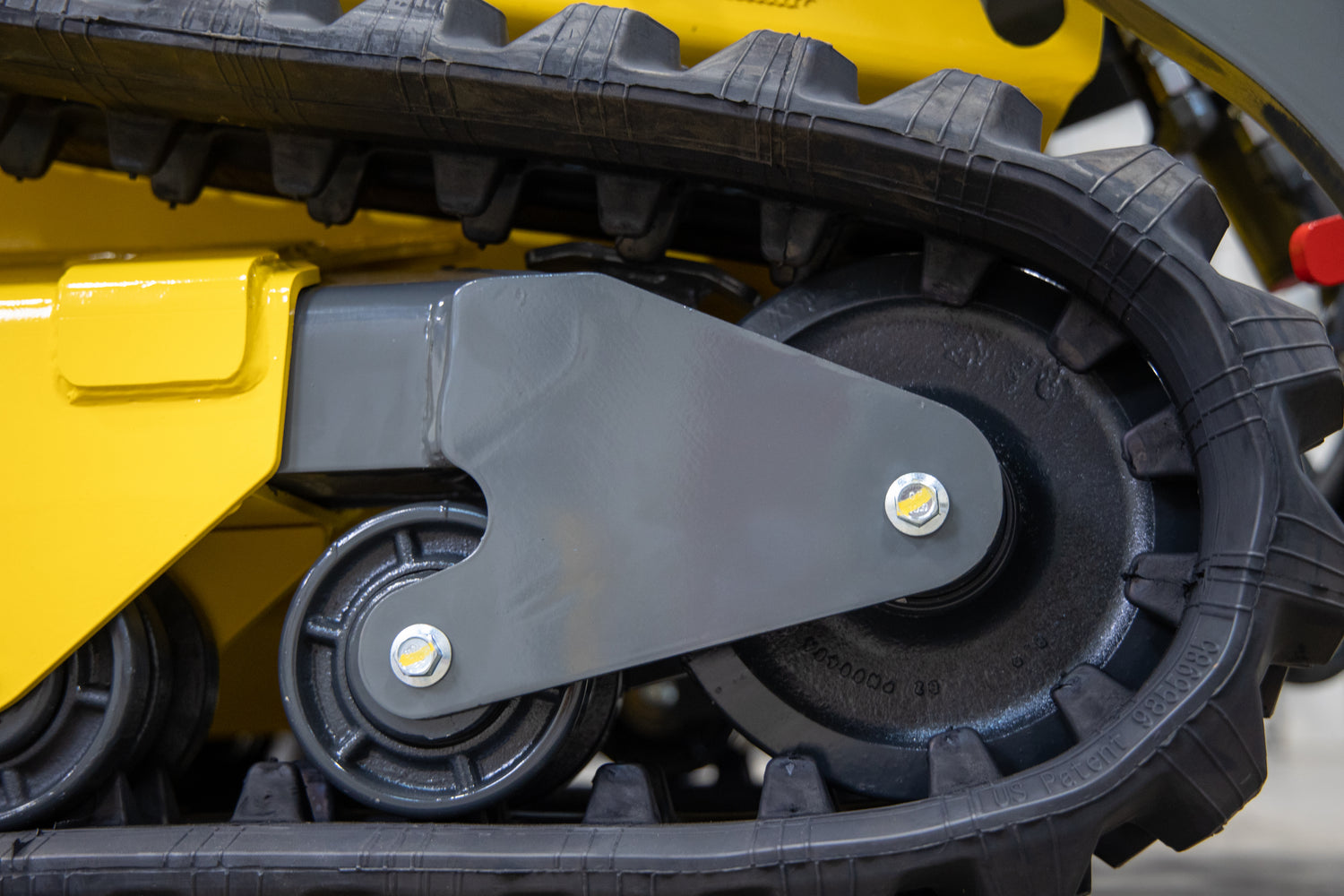

Anchored by 9.1-inch wide rubber tracks, the SM100 minimizes surface compression compared to metal wheels. When equipped with a standard bucket, the unit expands to an overall length of 108.0 inches, though the compact chassis measures 84.3 inches without attachments. This layout balances material handling power with portability requirements.
